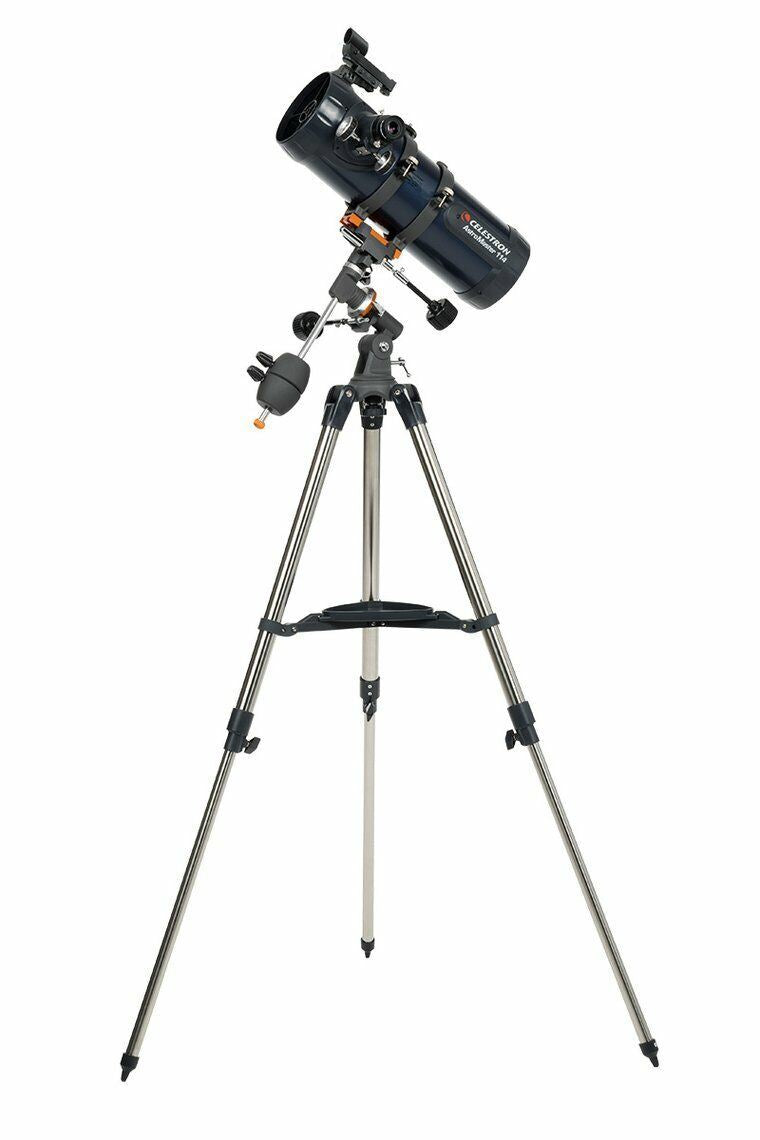

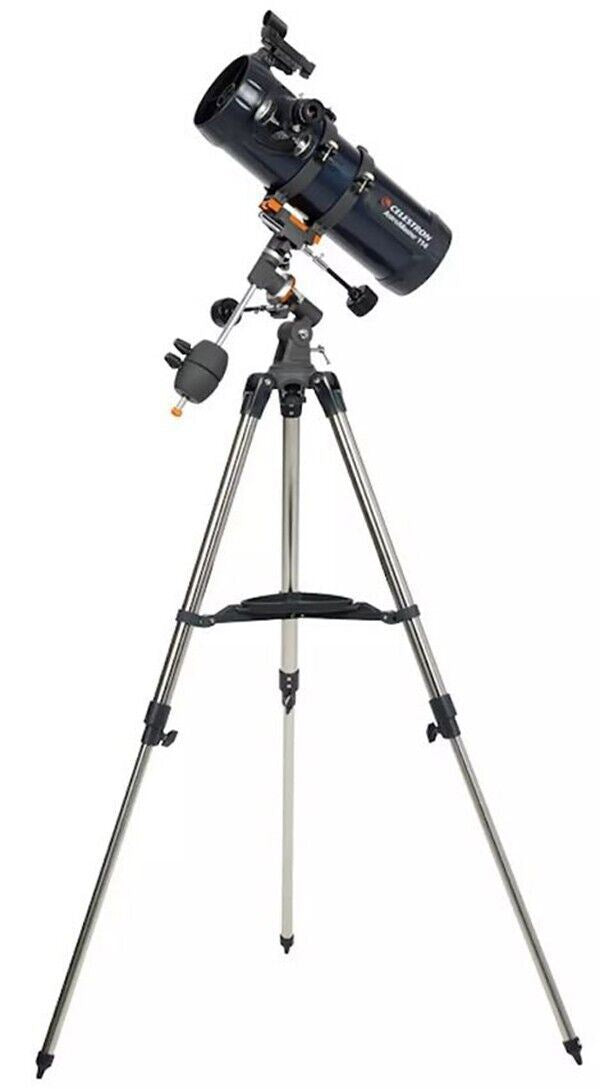

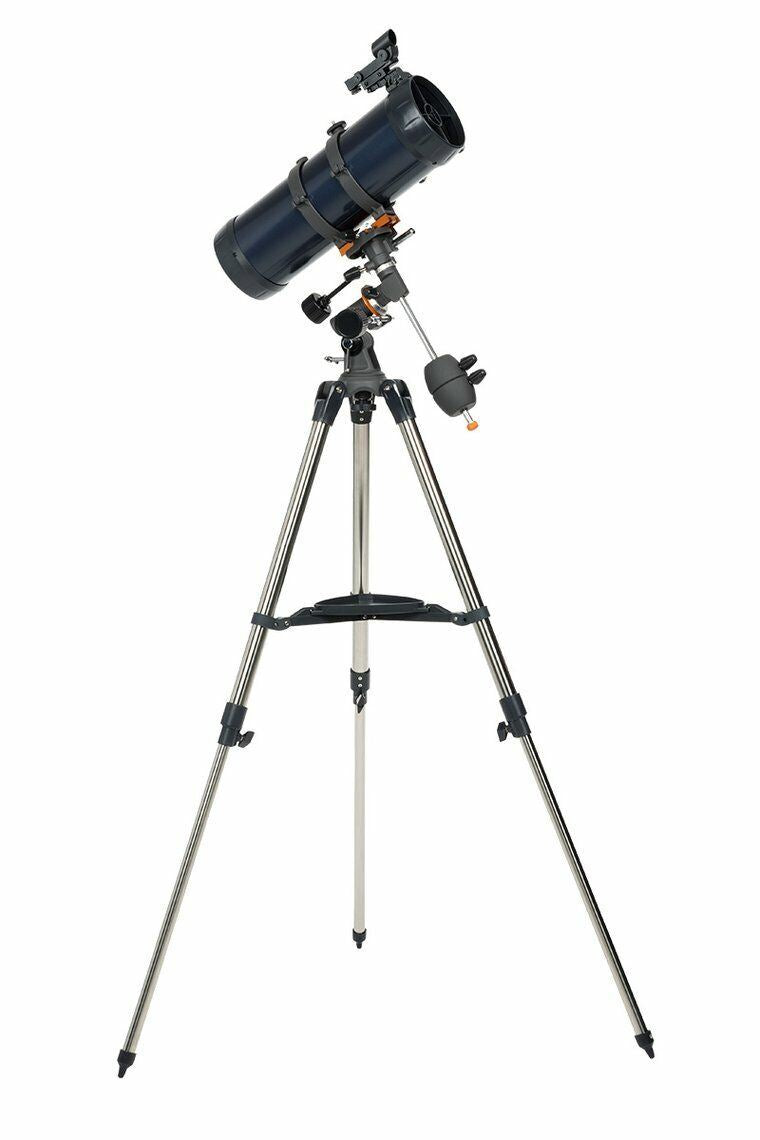

Celestron AstroMaster 114EQ Telescope + NexYZ Smartphone Adapter Kit #31044 (UK)
Celestron AstroMaster 114EQ Telescope + NexYZ Smartphone Adapter Kit #31044 (UK)

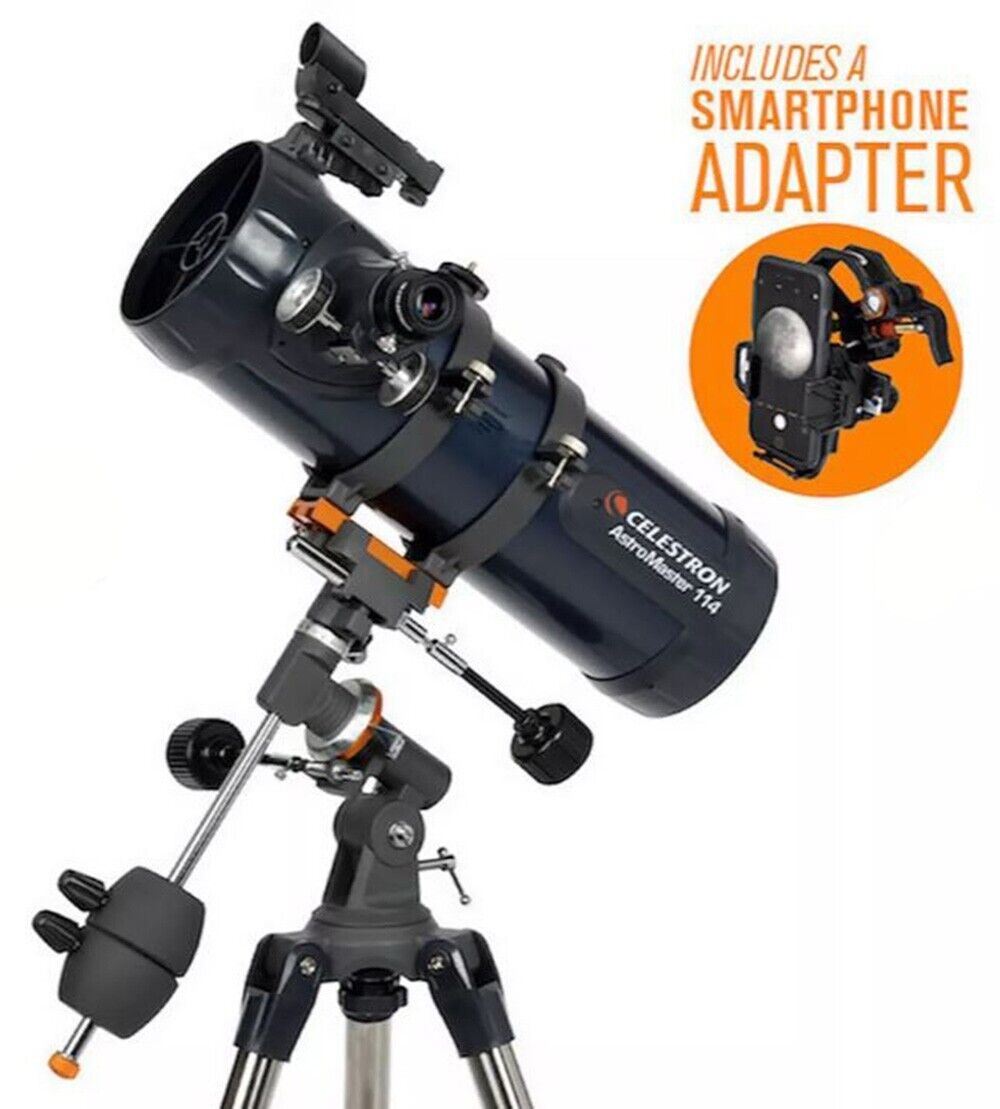

Celestron AstroMaster 114EQ Telescope + NexYZ SmartPhone Adapter Kit #31044
Package, includes a NexYZ Smartphone Adapter
Brand New UK Stock, boxed with full Guarantee
- Manual German equatorial mount with setting circles to locate and track sky objects

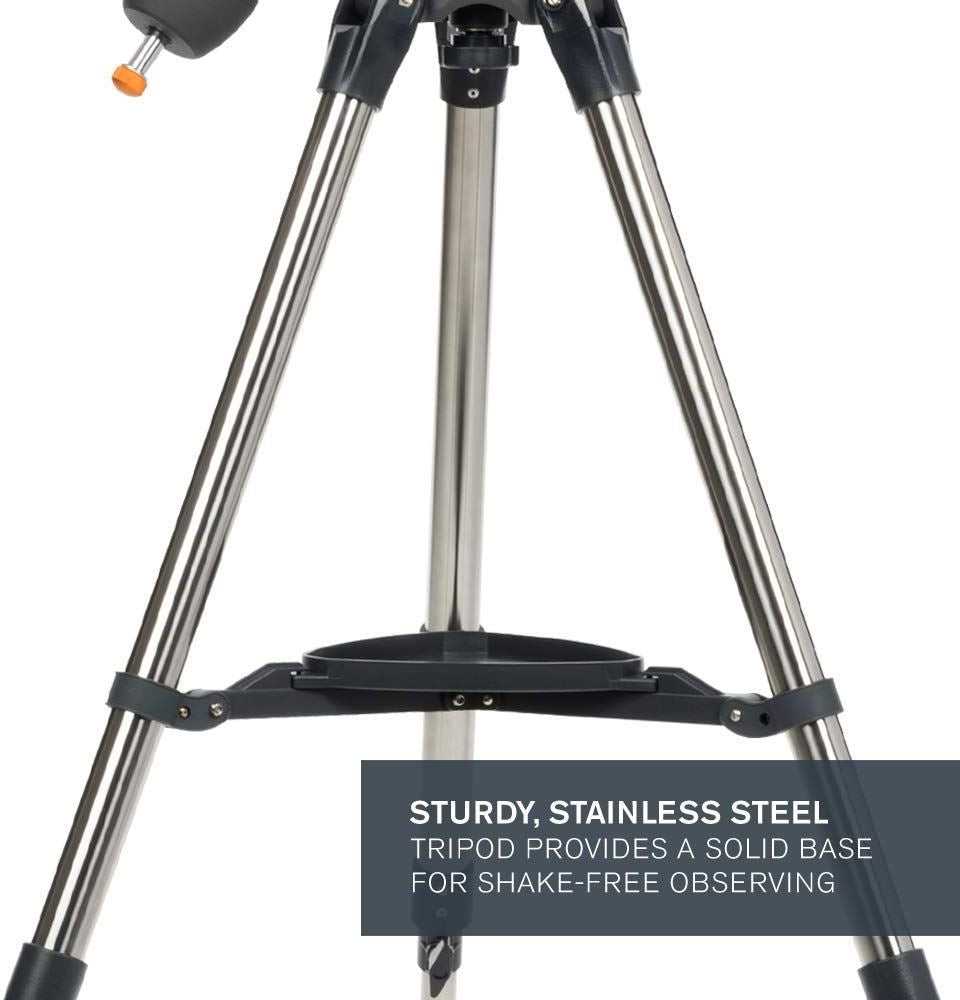

- Adjustable, full height steel tripod with deluxe accessory tray
- Quick and easy no-tool setup
- Accessories include a 20mm and 10mm eyepiece, a finderscope, a moon filter, a smartphone adapter, and a motor drive
- The smartphone adapter connects your smartphone to your telescope, so you can capture images and video through the eyepiece
- The adapter works with any eyepiece that has an outside diameter of 34mm
- Motor drive automatically tracks celestial objects as they appear to move across the night sky

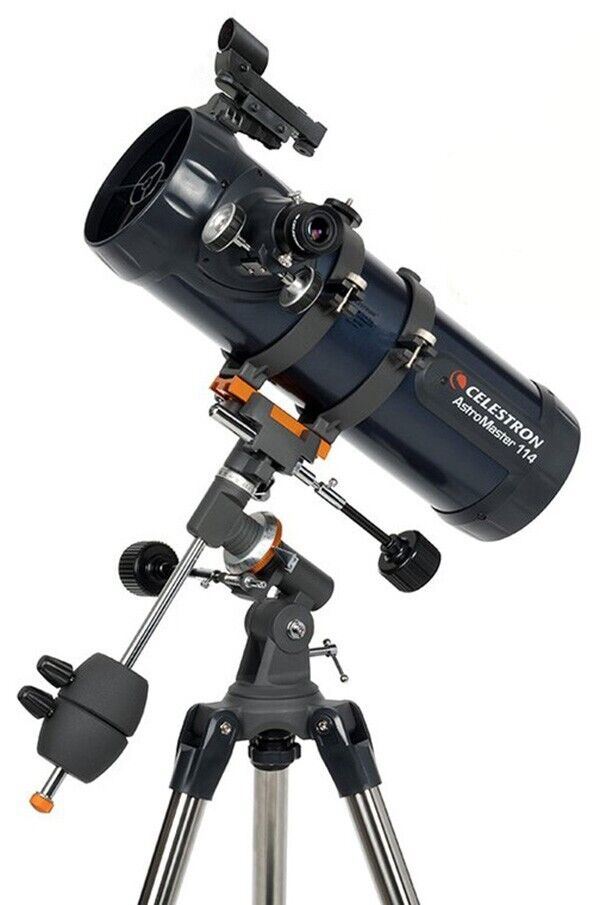

Discover our Solar System with the Celestron AstroMaster 114EQ! You’ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 114EQ provides bright, clear images of the Moon, planets, star clusters, and more for great nighttime viewing.

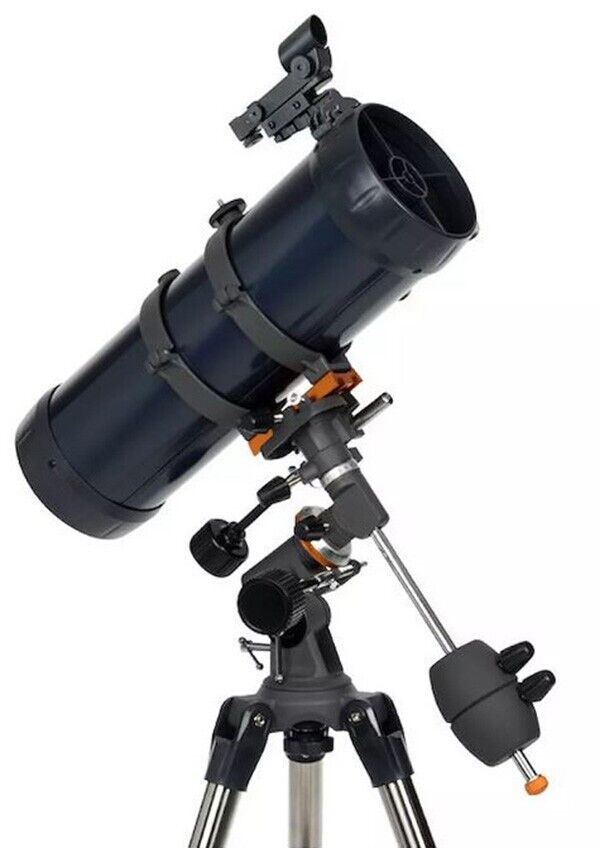

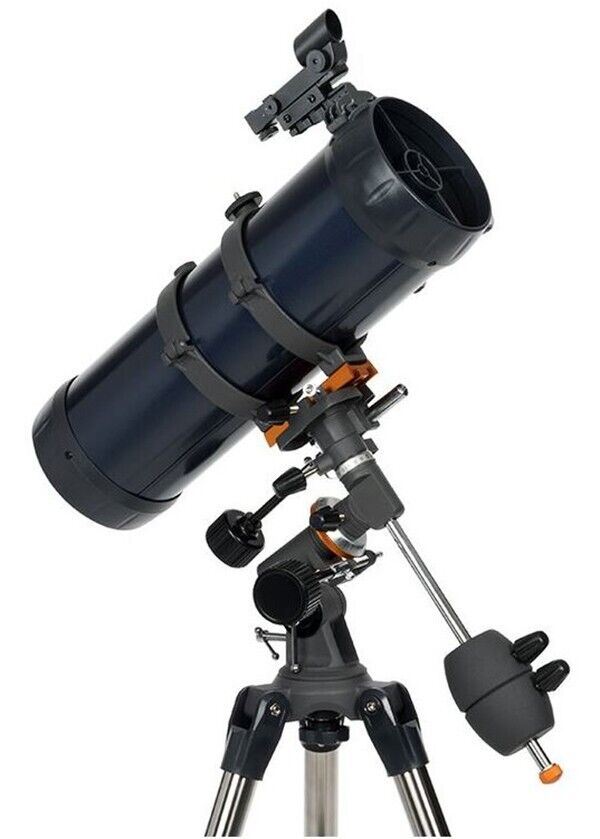

Manual German Equatorial telescope

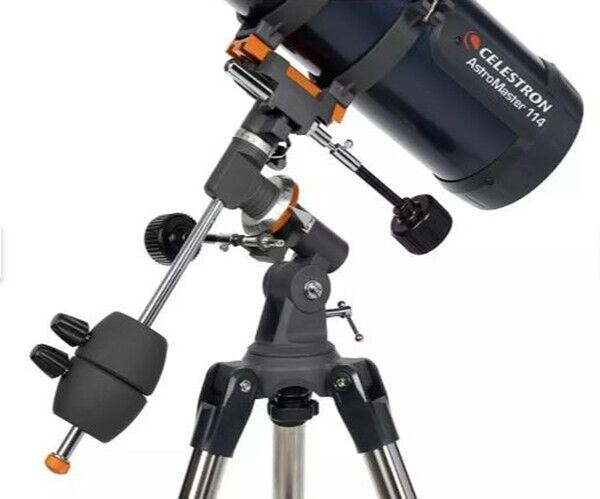

The AstroMaster mount comes with two slow motion control knobs that allow you to make fine pointing adjustments to the telescope in both Right Ascension and Declination axes, also referred to as RA and DEC.

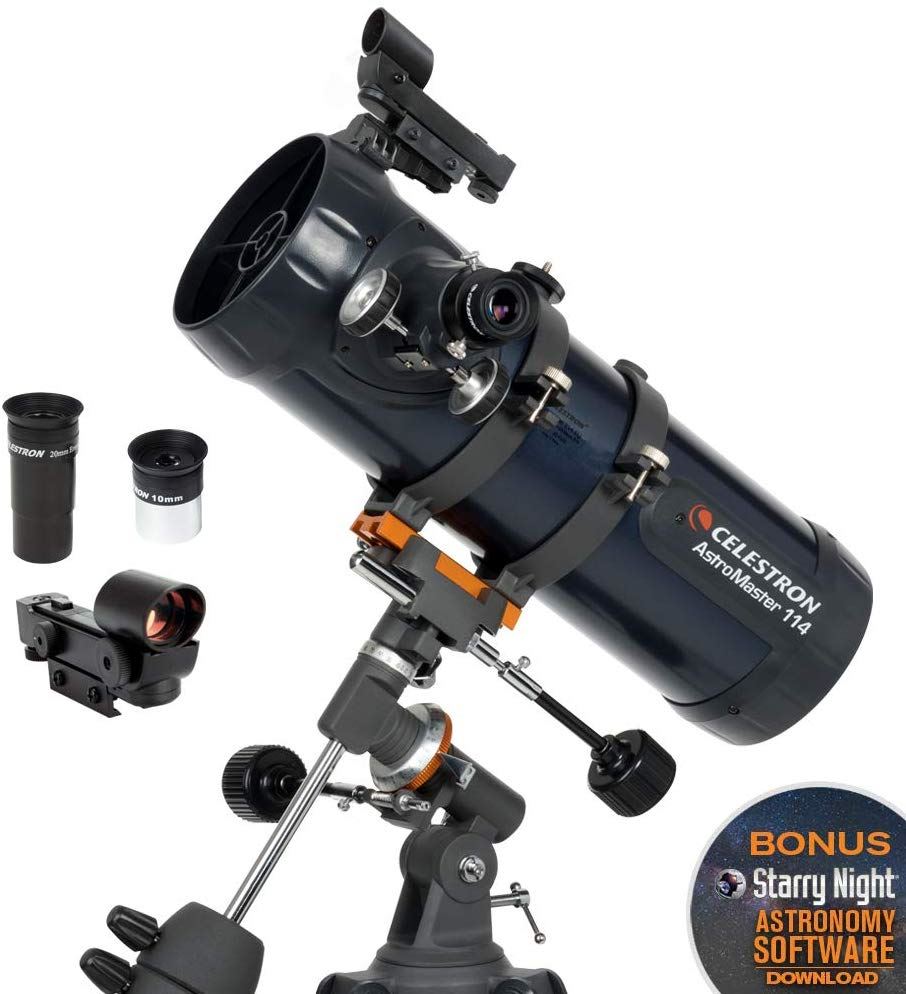

Accessories Included

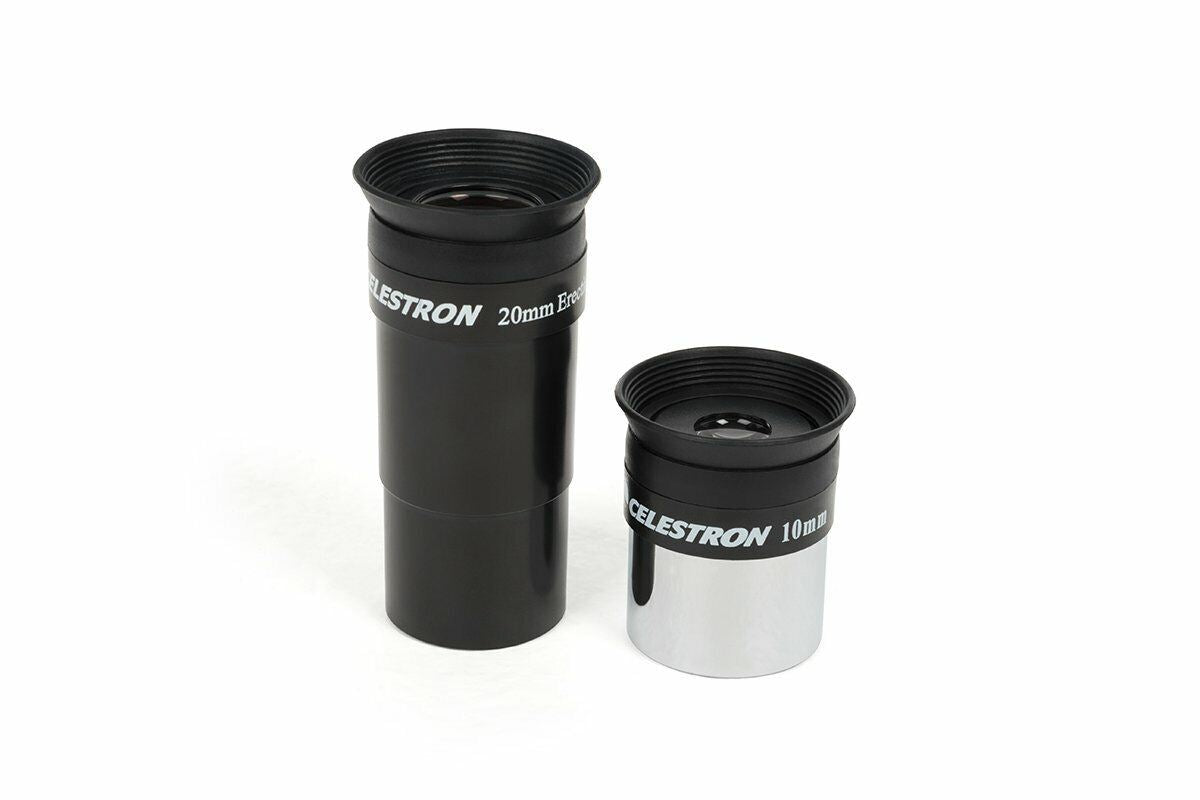

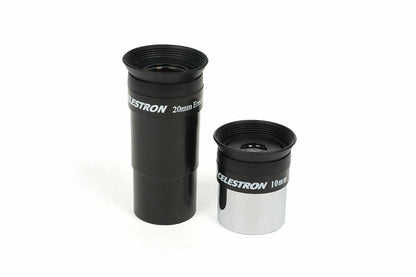

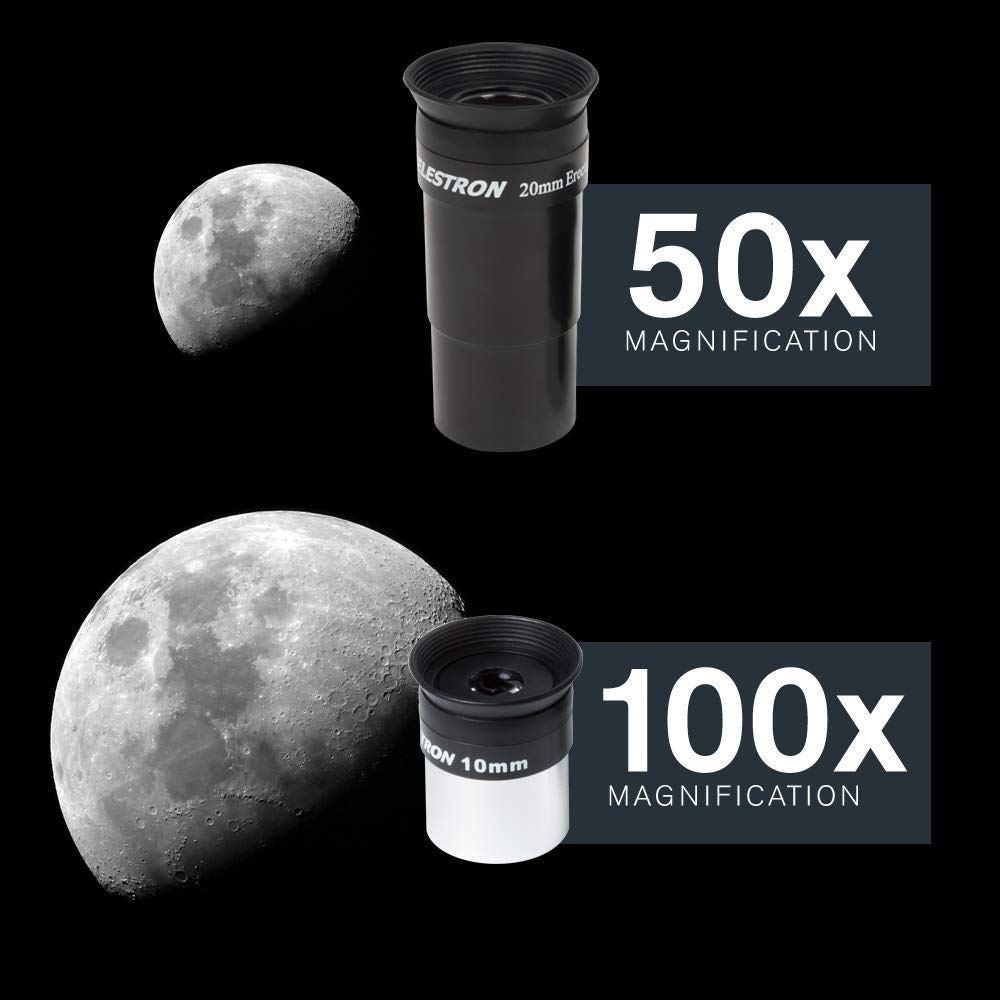

Accessories include a 20mm and 10mm eyepiece & a NexYZ smartphone adapter. The two eyepieces offer different magnifications for low and high powered views.
NexYZ 3 axis Smartphone Digiscoping Adapter
- For Telescopes, Binoculars & Spotters
- Take Stills and Video through Eyepiece
- Bluetooth Remote for iOS & Android
- Remote Eliminates Unwanted Vibrations
- Microscope and Smaller Optic Adapters
- Fits Eyepiece Diameters from 25 to 60mm
- Fits Phones from 2.6 to 3.5" Wide
- Easy Spring-Clamp Installation with Lock
- Compatible with a Wide Variety of Phones
- Aluminum Frame and Polymer Body
Capture still images and video with virtually any smartphone through virtually any optical device with Celestron's NexYZ DX 3-Axis Smartphone Digiscoping Kit—without even touching your screen. The NexYZ adapter design allows it to be used on spotting scopes, binoculars, and telescope eyepieces—including standard 1.25" and larger 2" telescope eyepieces. Celestron includes two rings that allow the adapter to be mounted on smaller optics, such as microscopes. Included with the kit is a remote shutter release that can be used on virtually any iOS or Android smartphone.
Attach It to Almost Any Optic
- Designed for use with telescopes, spotting scopes, and binoculars
- Use included adapters to fit smaller diameter optics like microscopes
- Fits eyepieces from 35 to 60mm in diameter—25mm with reducer adapters
- A spring-loaded clamping system holds the adapter securely on the eyepiece and locks in place
- Three directional knobs (X-, Y-, and Z-axis) enable you to perfectly align & center your phone's camera with the eyepiece
- Not for use on riflescopes
Mount Almost Any Phone
- Fits phones from 2.6 to 3.5" wide (65 to 90mm)
- Works with regular phone cases, but "folio-style" cases will need to be removed
- Tension adjustments to keep the phone firmly in place
- Fast adjustments make sharing the adapter with people that have different model phones easy
- Rubber pads protect the phone from scratches
Snap a Pic Fast & Easy
- Wireless Bluetooth shutter release remote
- Connects to most Bluetooth-enabled Android or iOS smartphone
- Capture your picture or video without having to touch your phone which will cause vibrations that ruin shots
Built to Last
- Frame is made of sturdy and lightweight aluminum
- Body is a polymer material that makes it able to support larger and heavier smartphones without failing
- Weighs 10 ounces
Starry Night Software
Download Celestron’s Starry Night Software and learn about the night sky, celestial objects, and how to plan your next observing session. Celestron Starry Night Software is the premier astronomy software package on the market, providing resources and knowledge to view our solar system and beyond.
Specification
Optical Design: | Newtonian Reflector |
Aperture: | 114mm (4.48") |
Focal Length: | 1000mm (39.37") |
Focal Ratio: | f/8.77 |
Focal Length of Eyepiece 1: | 20mm (0.79") with built-in erect image corrector |
Magnification of Eyepiece 1: | 50x |
Focal Length of Eyepiece 2: | 10mm (0.4") standard |
Magnification of Eyepiece 2: | 100x |
Barlow Lens: | Not Included |
Finderscope: | Built-in StarPointer™ red dot finderscope |
Star Diagonal: | None |
Optical Tube: | Aluminum |
Highest Useful Magnification: | 269x |
Lowest Useful Magnification: | 16x |
Limiting Stellar Magnitude: | 12.8 |
Resolution (Rayleigh): | 1.22 arc seconds |
Resolution (Dawes): | 1.02 arc seconds |
Light Gathering Power (Compared to human eye): | 265x |
Secondary Mirror Obstruction: | 44mm (1.73") |
Secondary Mirror Obstruction by Diameter: | 38% |
Secondary Mirror Obstruction by Area: | 14% |
Optical Coatings: | TBD |
Optical Tube Length: | 508mm (20") |
Optical Tube Diameter: | TBD |
Optical Tube Weight: | TBD |
Dovetail: | CG-5 Dovetail bar |
MOUNT INFO: | |
Mount Type: | Manual German Equatorial |
Height adjustment range (includes mount and tripod): | 812.8mm - 1295.4mm (32" - 51") |
Tripod Leg Diameter: | 31.75mm (1.25") steel |
Accessory Tray: | Yes |
Tripod Weight: | 7.6 lbs (3.44 kg) |
Slew Speeds: | Manual |
Dovetail Compatibility: | CG-5 saddle plate |
Software: | Celestron Starry Night Basic Edition Software | SkyPortal App |
Total Kit Weight: | TBD |
Included Items: | Optical tube | 20mm and 4mm eyepieces | 3x Barlow Lens | Finderscope | Motor drive | smartphone adapter | Tripod and mount | manual |
PHONE ADAPTER INFO: | |
Phone Compatibility: | Any smartphone |
Comptabile Optics: | Any 1.25" eyepiece supplied with PowerSeeker and AstroMaster telescope kits or any eyepieces with a 34mm outside diameter |
Dimensions: | 165mm x 114.3mm 25.4mm (6.5" x 4.5" x 1") |
Weight: | 2 oz |
