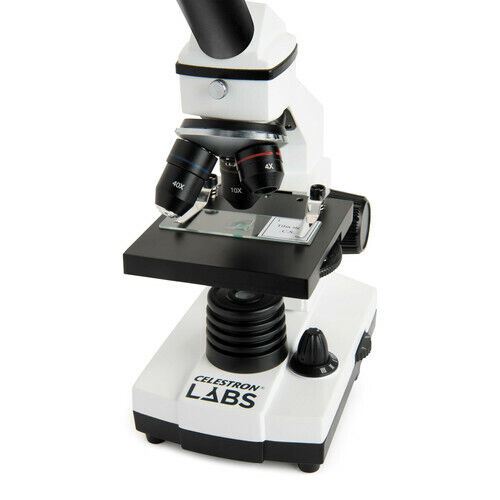

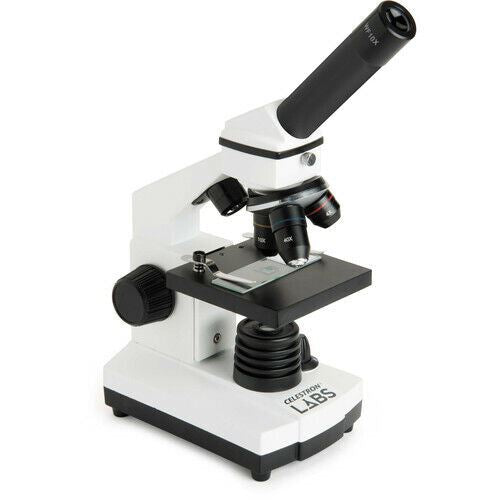

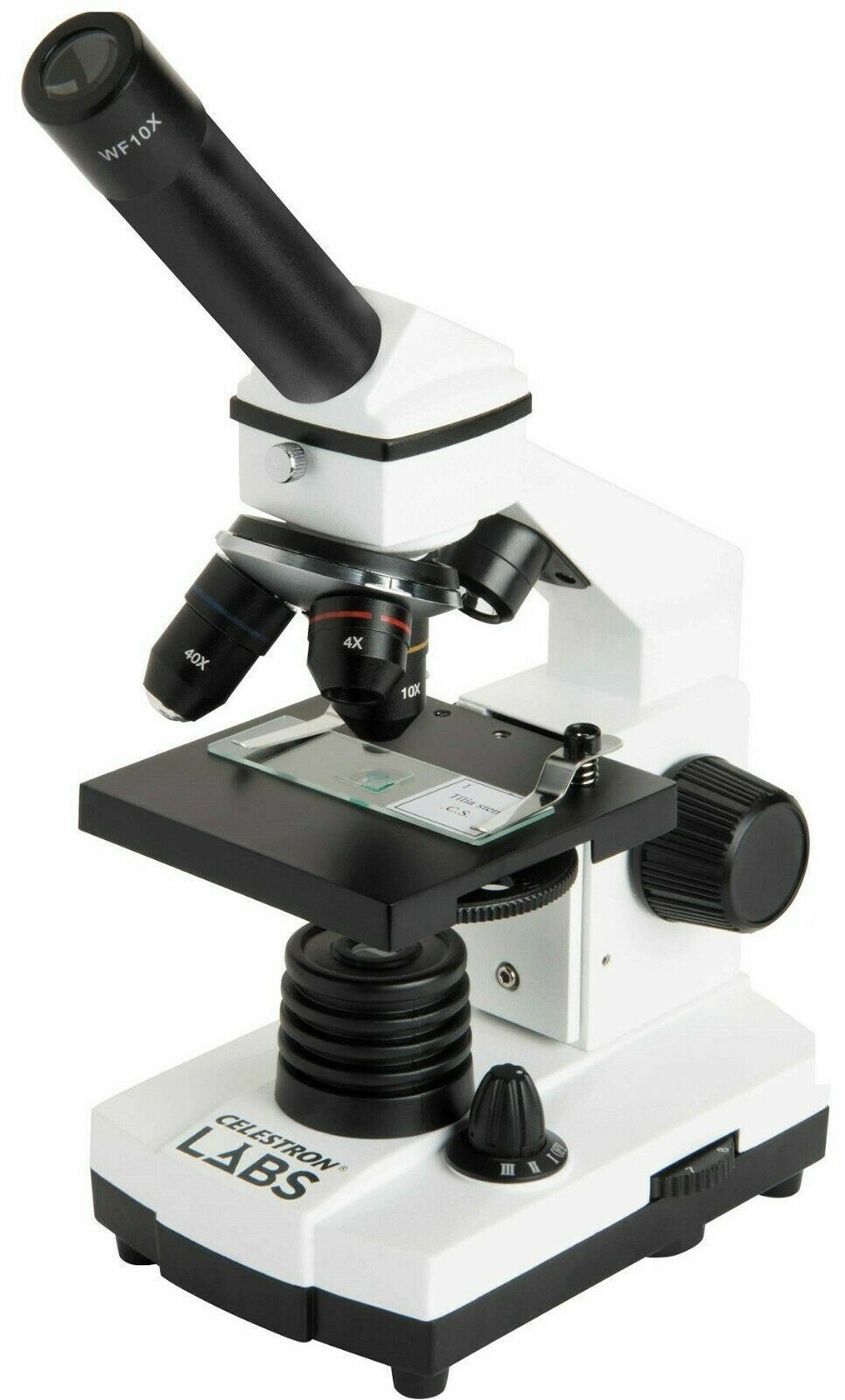

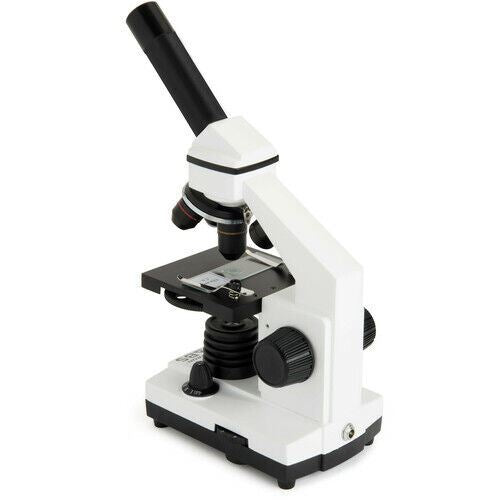

With an eyepiece set at a comfortable 45° angle and broad magnification range, Celestron Lab's CM800 Cordless Monocular Microscope is ideally suited for students and hobbyists alike. Its three-position turret holds the 4x, 10x, and 40x objectives and the instrument comes with two eyepieces that produce magnifications from a practical 40x to a more powerful 800x.

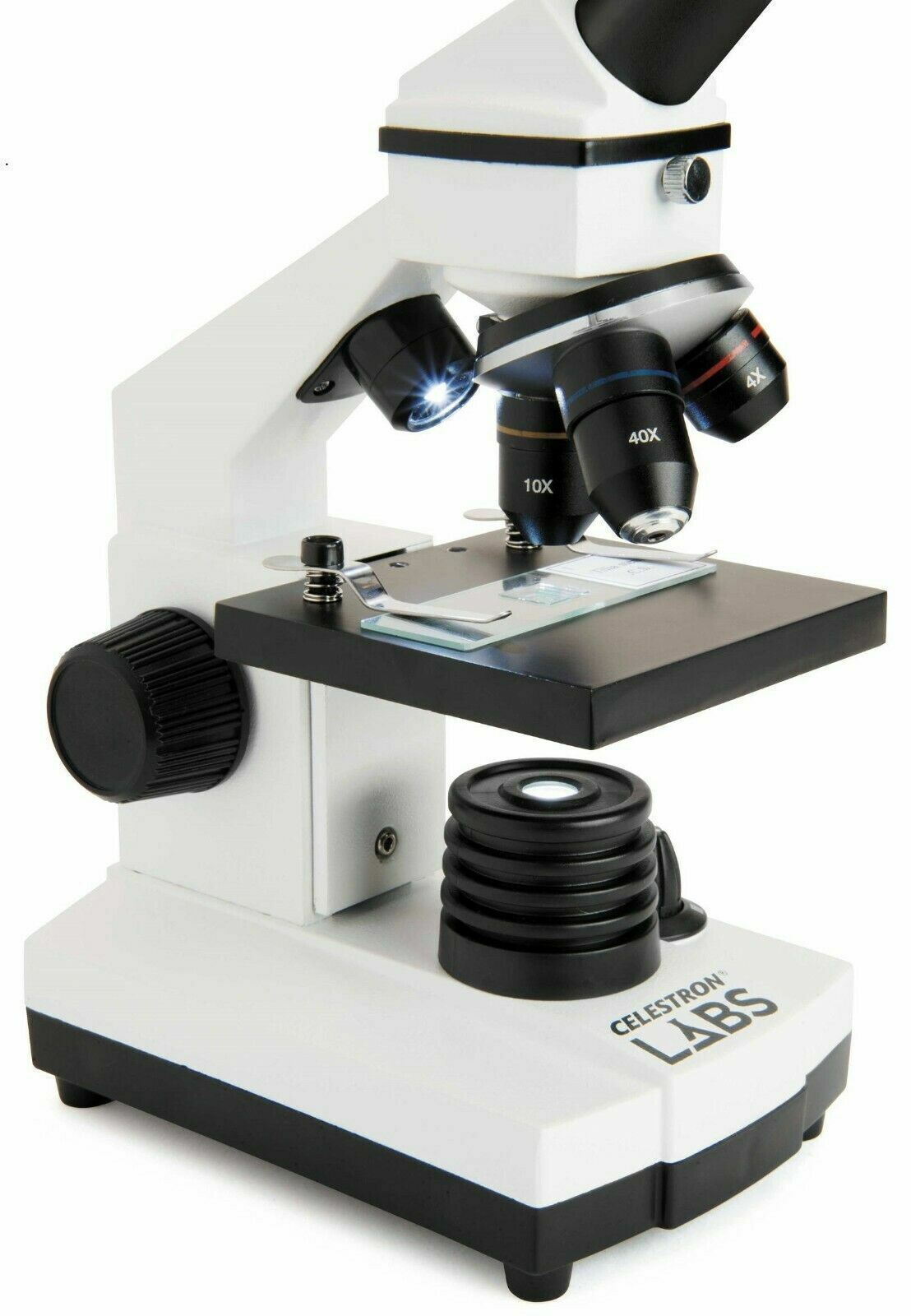

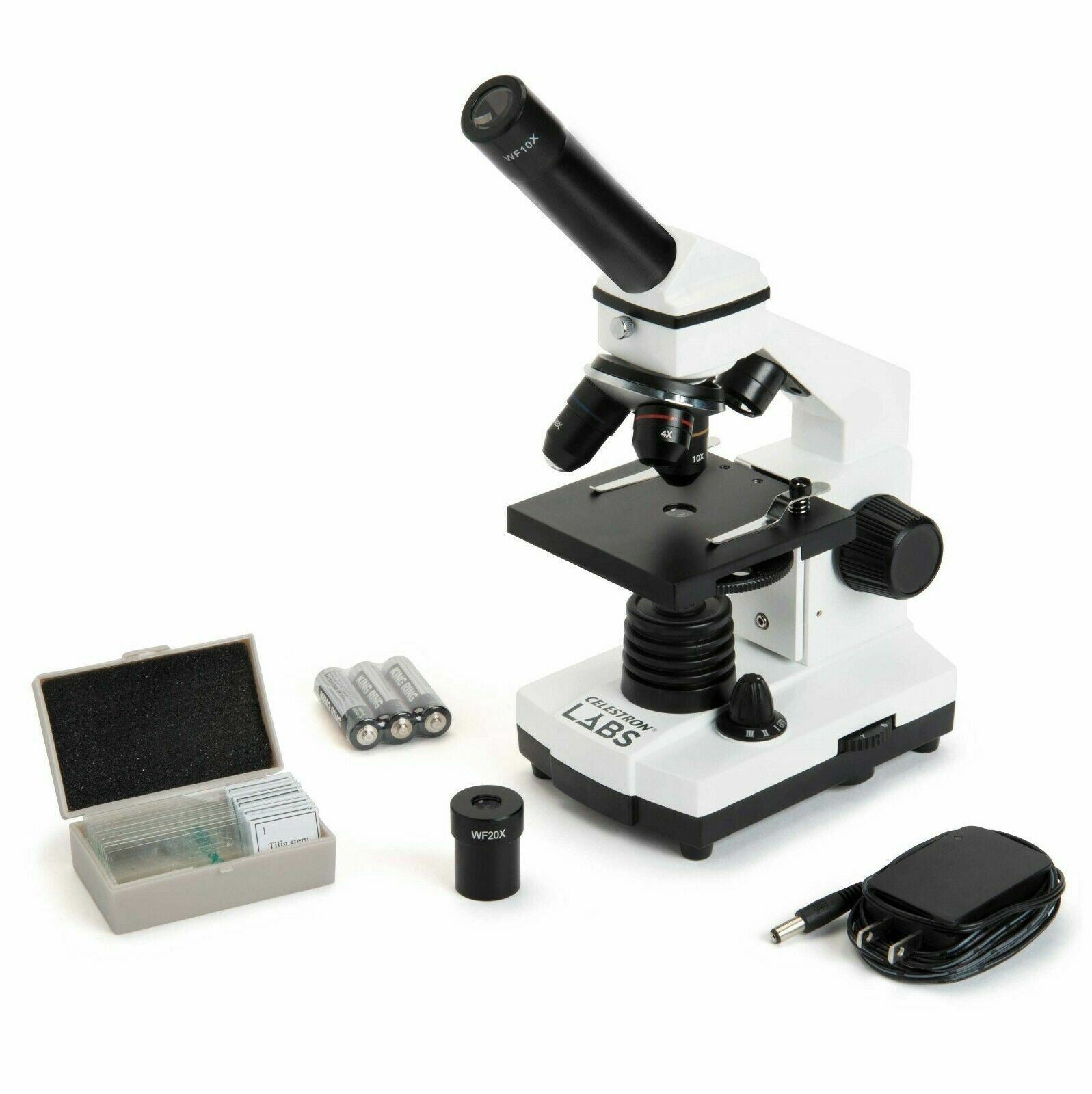

The 3.5x3.5" stage has metal slide/specimen clips, and an adjustable-intensity LED emitter under the stage provides the necessary illumination. It is powered by either a UK 240 VAC plug, or three included AA batteries for use in the field. The manually adjustable iris and condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the focus knob to bring all specimens into sharp, clear focus.
Optical System
Monocular head with eyepiece set at 45°
One 10x wide field eyepiece
One 20x wide field eyepiece

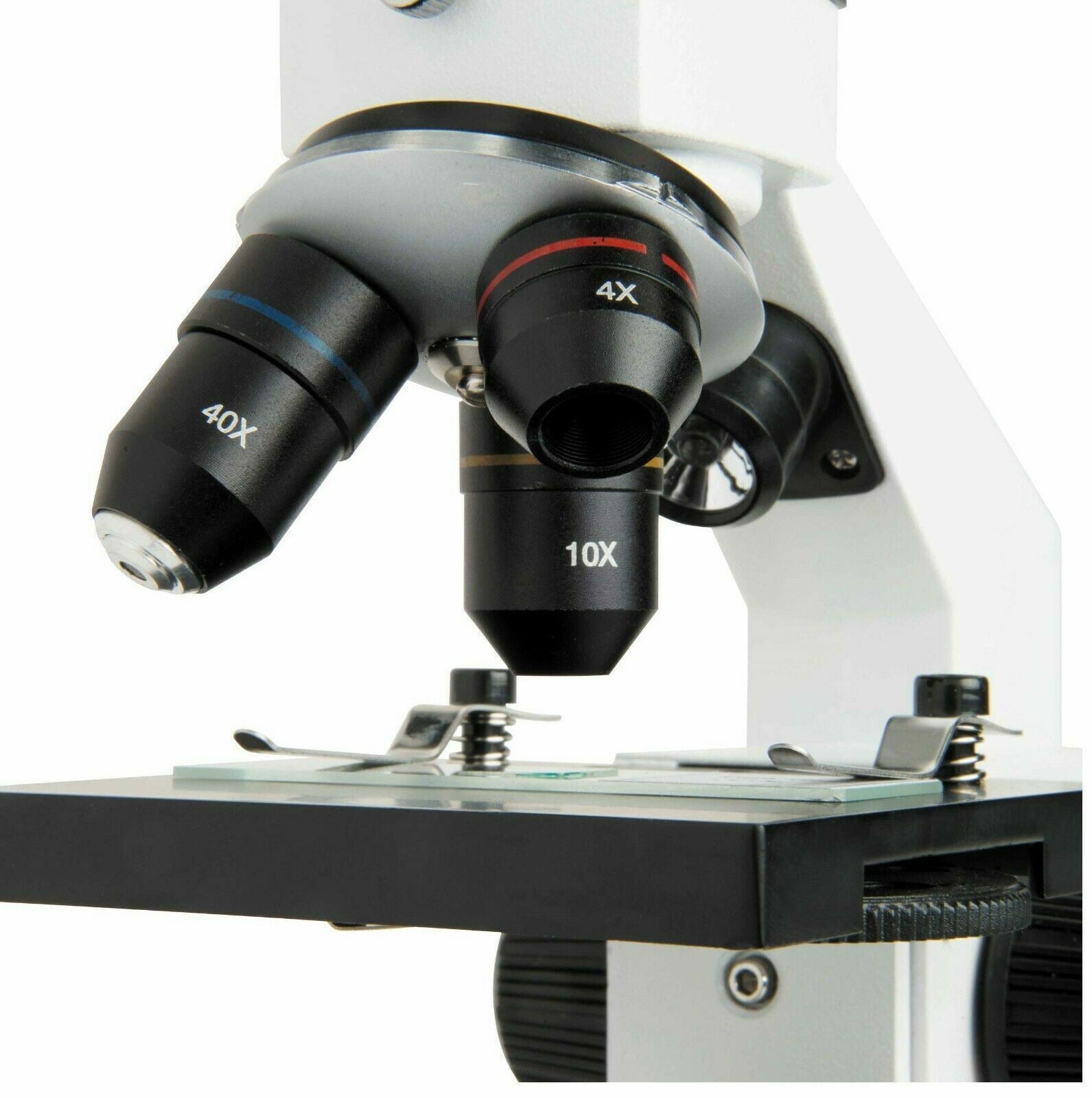

4x, 10x, and 40x objectives
Three-position click-stop turret with grip ring
40x, 100x, and 400x magnification with 10x eyepiece
80x, 200x, and 800x magnification with 20x eyepiece
Lighting
0.65 NA condenser

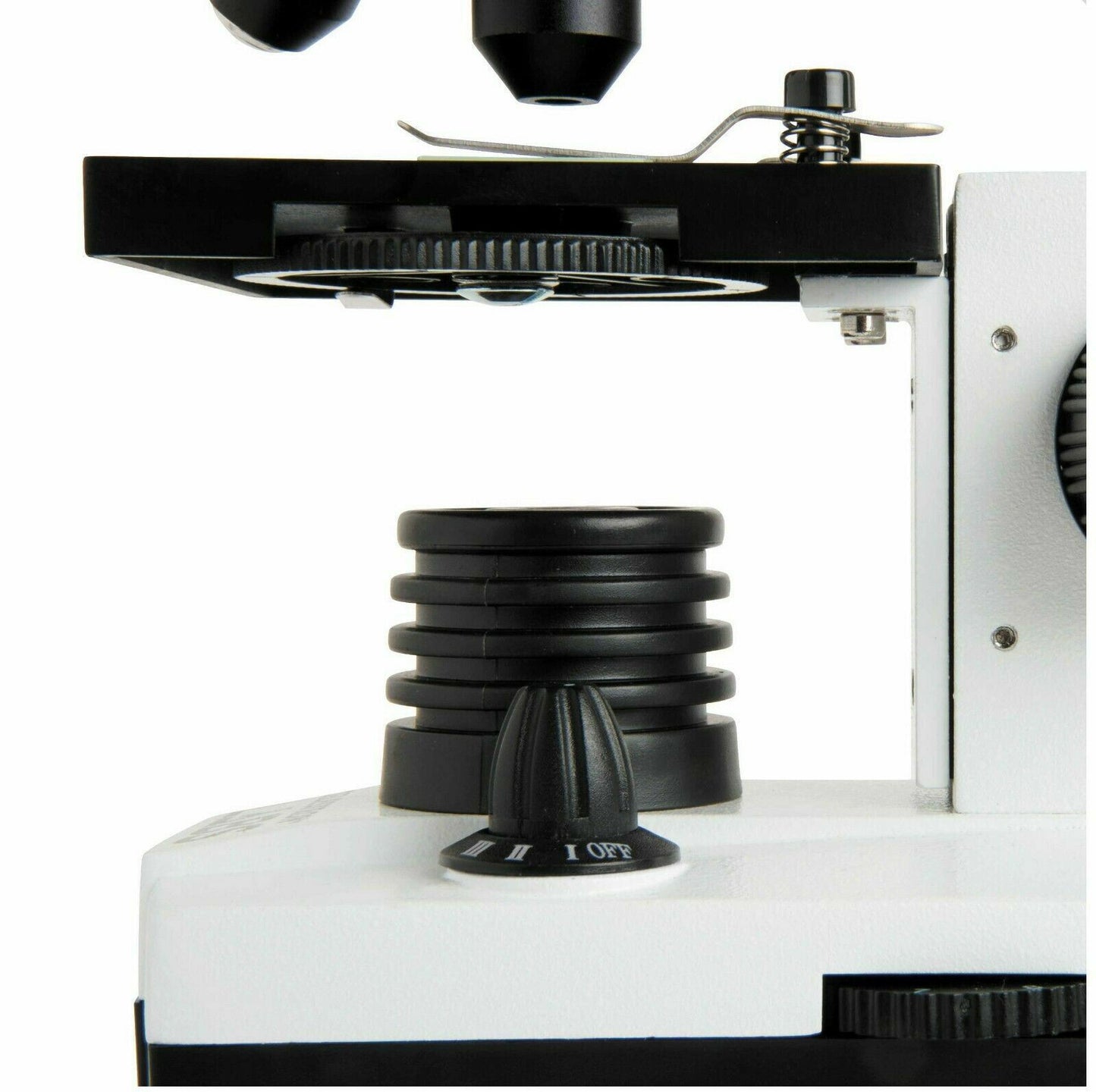

Lower LED illumination, adjustable intensity
Disc diaphragm with six apertures
Focusing
Coarse focus knobs
Left and right focus knobs for left and right-handed use
