HIK Micro

HIK Micro Gryphon Fusion GH25L 25mm Thermal Optical Monocular LRF = 1Yr Warranty

HIK Micro Gryphon Fusion GH25L 25mm Thermal Optical Monocular LRF = 1Yr Warranty

Regular price £795.00
Regular price Sale price £795.00
Sale Sold out
Taxes included.

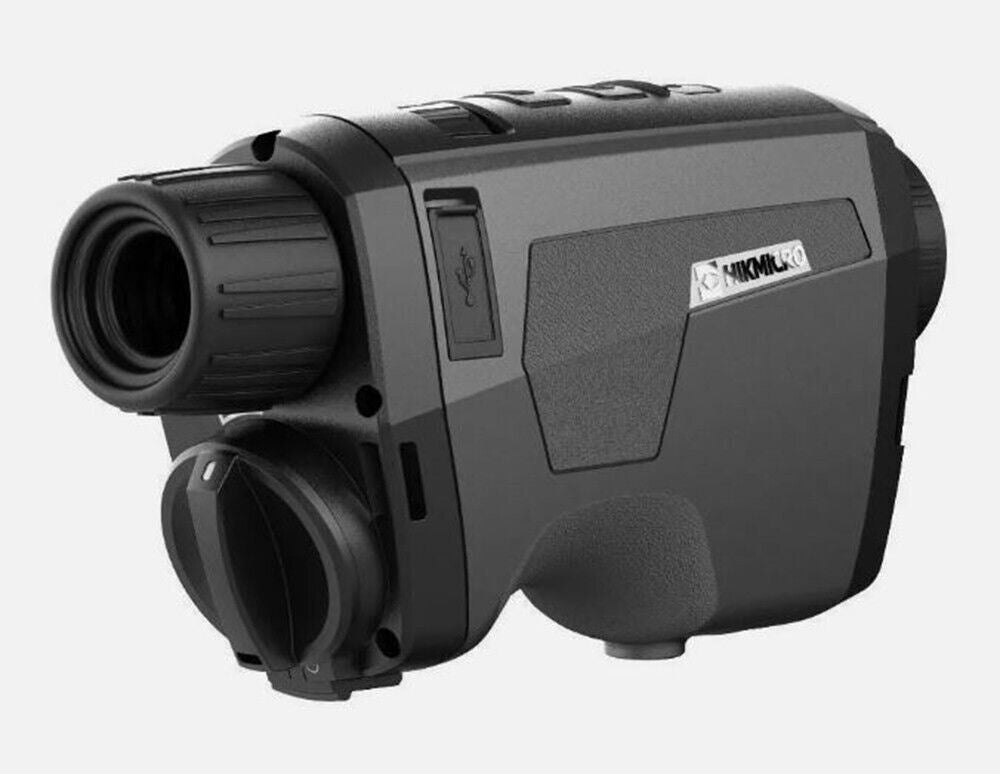

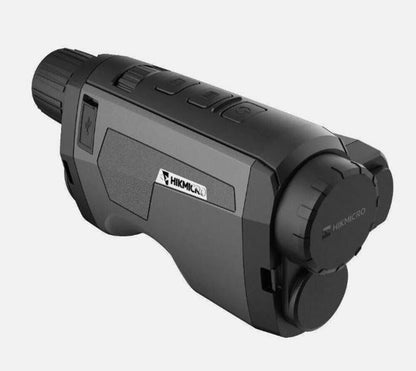

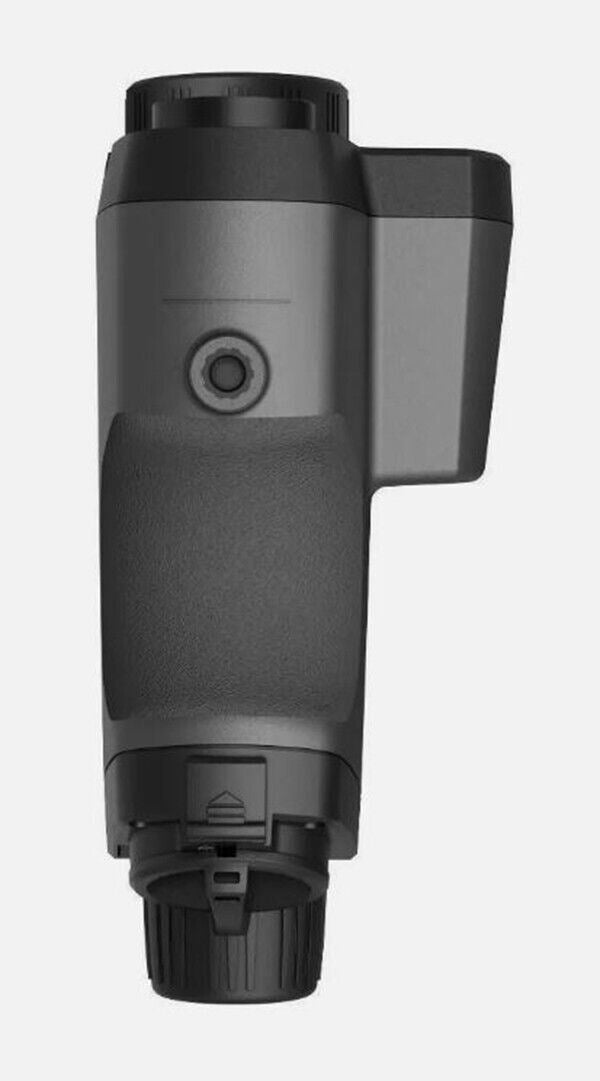

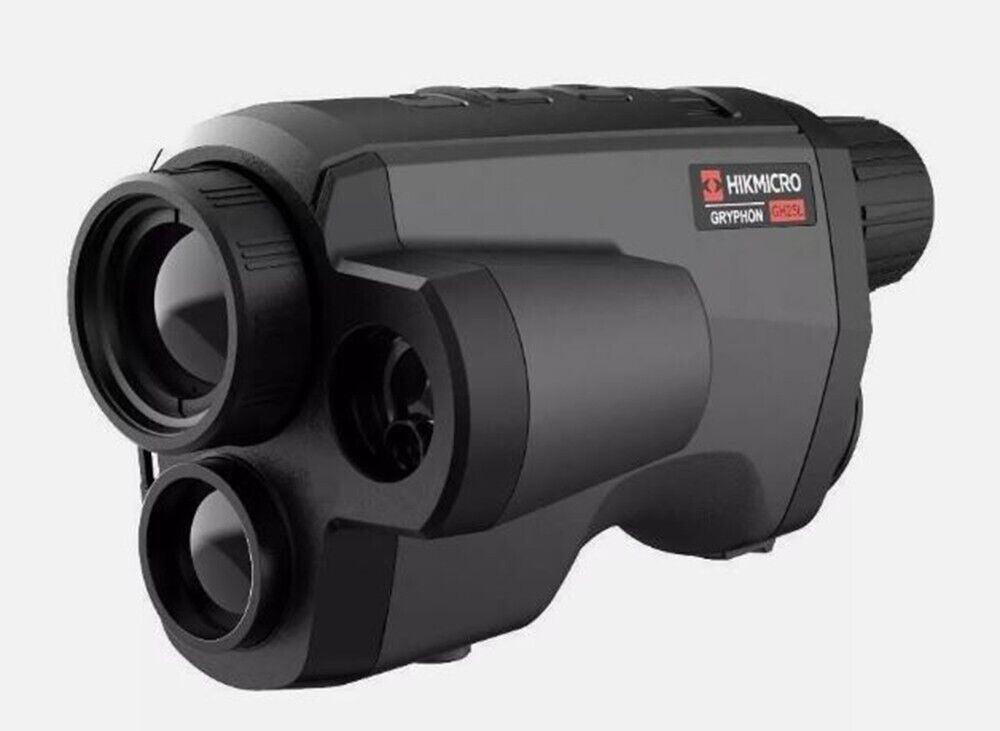

HIK Micro Gryphon Fusion GH25L  25mm Thermal Optical Monocular Laser Rangefinder

REFURBISHED UK Stock, boxed with 1 Year Guarantee

These are fully checked, boxed units but only have a 1 Year warranty, they have all been quality controlled by HikMicro - grab a bargain whilst stocks last!



  • 25mm focal length
  • Powerful 384×288 thermal sensor
  • Sub <35mK thermal Sensor
  • 12um pixel pitch
  • F25 1.0 Germanium lens
  • Optical channel
  • 600m Laser Rangefinder

The HIKMICRO Gryphon 25mm Fusion Thermal & Optical Monocular With LRF  introduces many unique features including ground-breaking bi-spectrum, Fusion technology which uses a thermal sensor alongside a conventional optical camera to deliver a super-detailed thermal image.

You can use the HIKMICRO Gryphon 25mm Fusion Thermal & Optical Monocular With LRF in several distinct image modes including a conventional thermal monocular with the choice of 4 colour palettes, a highly detailed daylight & night vision optical camera or the unique Fusion mode which uses the detail from the optical channel to boost the definition and detail of the thermal image.

The Gryphon chassis also introduces a range of new features. These include a jog wheel that allows you to scroll the magnification up and down as you would with a conventional optical scope, an optional laser range finder and a removable 18650 battery. The large 1024×768 OLED display gives you a bright and crisp view of your surroundings that’s easy on your eye.

At the centre of the Gryphon is HIKMICRO’s 384x288px, 12µm thermal sensor with a sub 35mk NETD. This highly accurate thermal sensor is capable of detecting small temperature differences, building a highly detailed image, even in the harshest of conditions.

The thermal sensor is paired with HIKMICRO’s high performance 25mm focal length lens system which delivers 2.4x optical magnification with up to 8x digital magnification also available to expand the detail in your image. The thermal lens system also has a high specification F1.0 aperture, this means that all of the available thermal signal reaches the sensor. This combines with the highly accurate thermal sensor to deliver excellent thermal performance.

This is paired to a high-resolution optical camera that is capable of providing a detailed image both in daylight hours and in complete darkness using the supplied IR torch. You can quickly switch between pure thermal view and the detailed optical mode to detect and accurately identify heat sources.

The Gryphon also includes the unique Fusion mode which adds the detail from the optical image to boost the performance of the thermal channel, delivering the ultimate in detection and detail.

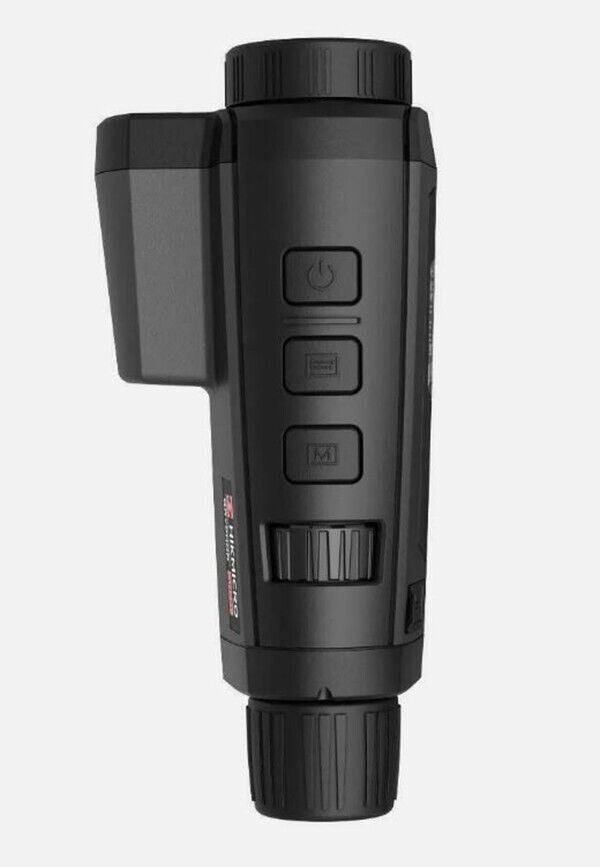

The Gryphon uses an all-new chassis design which has been developed to be easily held and operated in one hand. There are three buttons on the top of the unit make it easy to operate the laser range finder and switch between image modes. HIKMICRO have also included a revolutionary jog wheel that falls comfortably to the tip of your index finger and can be used to scroll up and down the magnification like a conventional optical scope. This jog wheel is also used to quickly navigate the menu system.

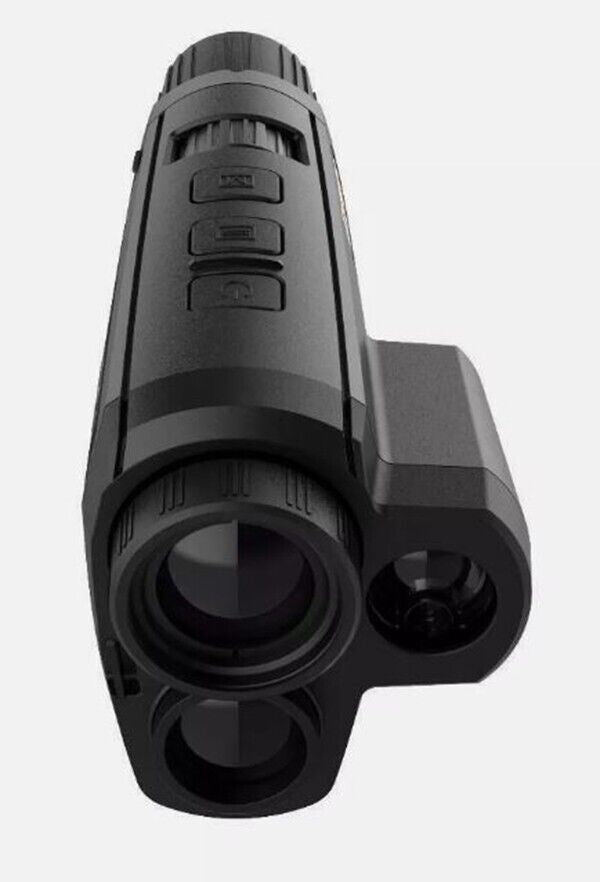

The 600m laser range finder is located on the left-hand side of the unit in a compact housing and offers a distance reading accurate to ±1m. When activated there is a small crosshair added to the display that can be used to target the rangefinder. Simply press and hold the Rangefinder button and the distance to your target is displayed in the screen.

The Gryphon is also the first Monocular in the HIKMICRO range to be powered by the industry standard 18650 removable battery. This makes extended hunting trips possible without any power concerns. Replacement batteries are readily available and economical to buy. There is also a high specification charger included with your Gryphon, this provides lots of detail about the charging status and health of your batteries ensuring that you aren’t caught in the field with a dead battery.

There are lots of other small improvements that have been included like the power button includes a status light so you can see at a glance if the unit is powered on or in standby mode.

As with all other HIKMICRO thermal products you can access the T-Vision app to stream, record and control your Gryphon. You can also record images and videos from your trips to the 16GB internal memory. The latest version of the T-Vision app offers extended features like access to the LRF, transferring images stored on the device into your phone and also the ability to install the latest firmware.

All thermal sensors used in HIKMICRO products are designed, developed and manufactured by HIKMICRO. This guarantees you unrivalled performance and value for money. You are also covered by the 3 years HIKMICRO UK warranty. Should you encounter a problem with your product, HIKMICRO have UK based technicians who can resolve any issue quickly.

Specification

Sensor

384×288px @ 12µm

Objective Lens (Focal Length)

25mm

Detection Range (Human 1.8 x 0.5m)

1250m

Type

VOx Uncooled Focal
Plane Arrays

Resolution, pixels

384×288px

Pixel pitch, µm

12µm

Frame rate, Hz

50 Hz

NETD

<35mK

Objective lens

F1.0

Magnification (Optical)

2.4x

Magnification (Digital)

1x, 2x, 4x, 8x

Field of view

10.53°× 7.9°

Sensor resolution

1960x1200px

Wavelength sensitivity

400-1000 nm

Focal length

22mm

LRF Fitted

Yes

Maximum range

600m

Measurement accuracy

± 2m

Type

9.9mm, OLED

Resolution, Pixels

1024 ×768

Colour Palettes

White Hot, Black Hot, Red Hot, Fusion, Visible, Thermal & Visible Fusion

Build in memory, Gb

16 gb

Hot Tracking

WiFI hot spot

YES

T-Vision App support

YES

Degree of protection, IP code

IP67

Dust protection

Protected against dust ingress

Water protection

Protected against temporary submersion in water

Operating temperature range

-20 °C to 55 °C

Dimensions, mm

87mm x 73mm x 167mm

Weight, kg

0.5 kg

Operating time on battery
(WiFi & Hot tracking disabled)

8 hours continuous running

Charging interface

Removable 18650 battery
