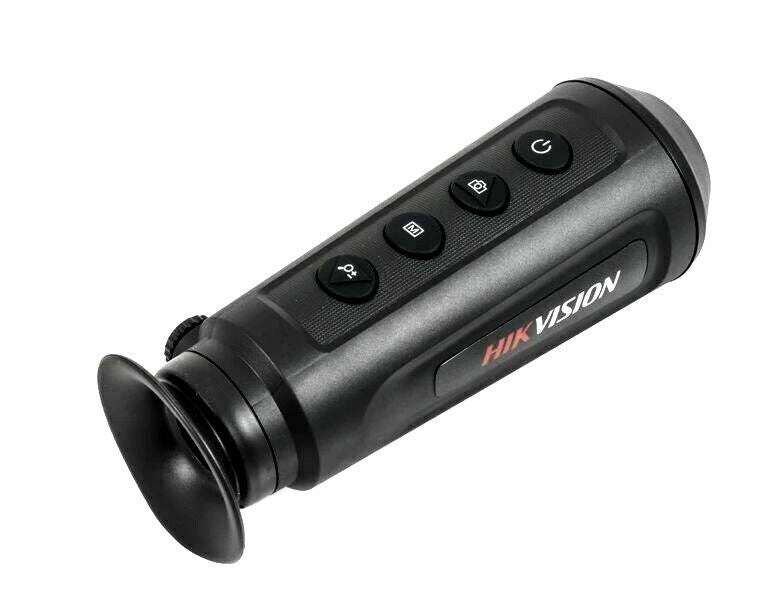

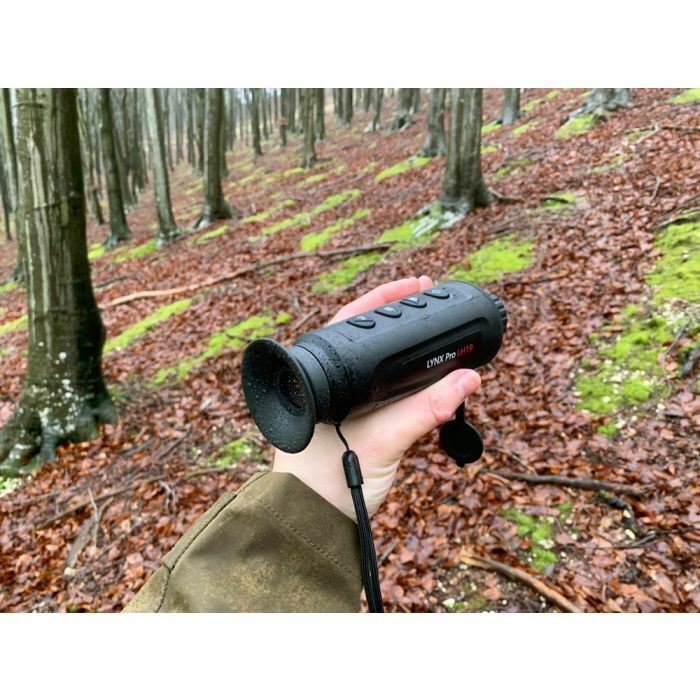

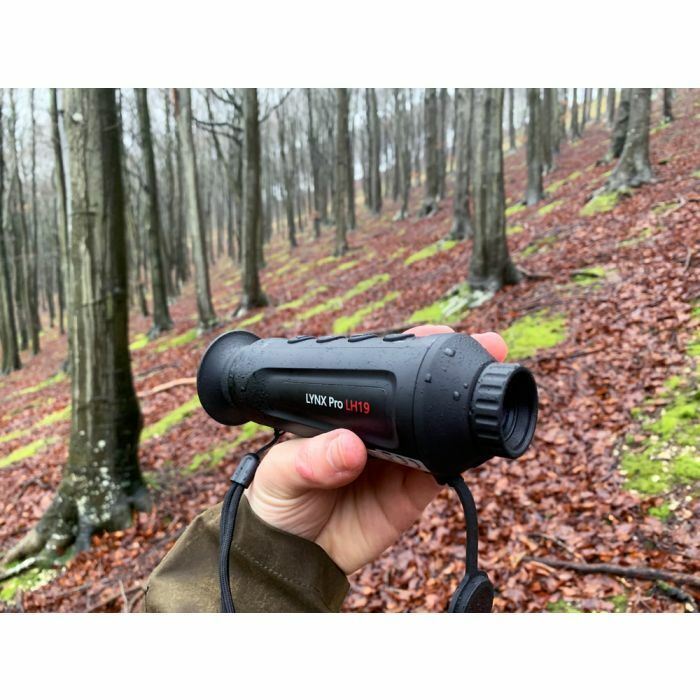

HIK Micro Lynx PRO Thermal 19mm Monocular 35mK Smart Night Vision # HM-LH19 (UK)

HIK Micro Lynx PRO Thermal 19mm Monocular 35mK Smart Night Vision # HM-LH19 (UK)

Regular price £649.00
Regular price Sale price £649.00
Sale Sold out
Taxes included.

HIK Micro Lynx PRO Thermal 19mm Monocular 35mK Smart Night Vision # HM-LH19

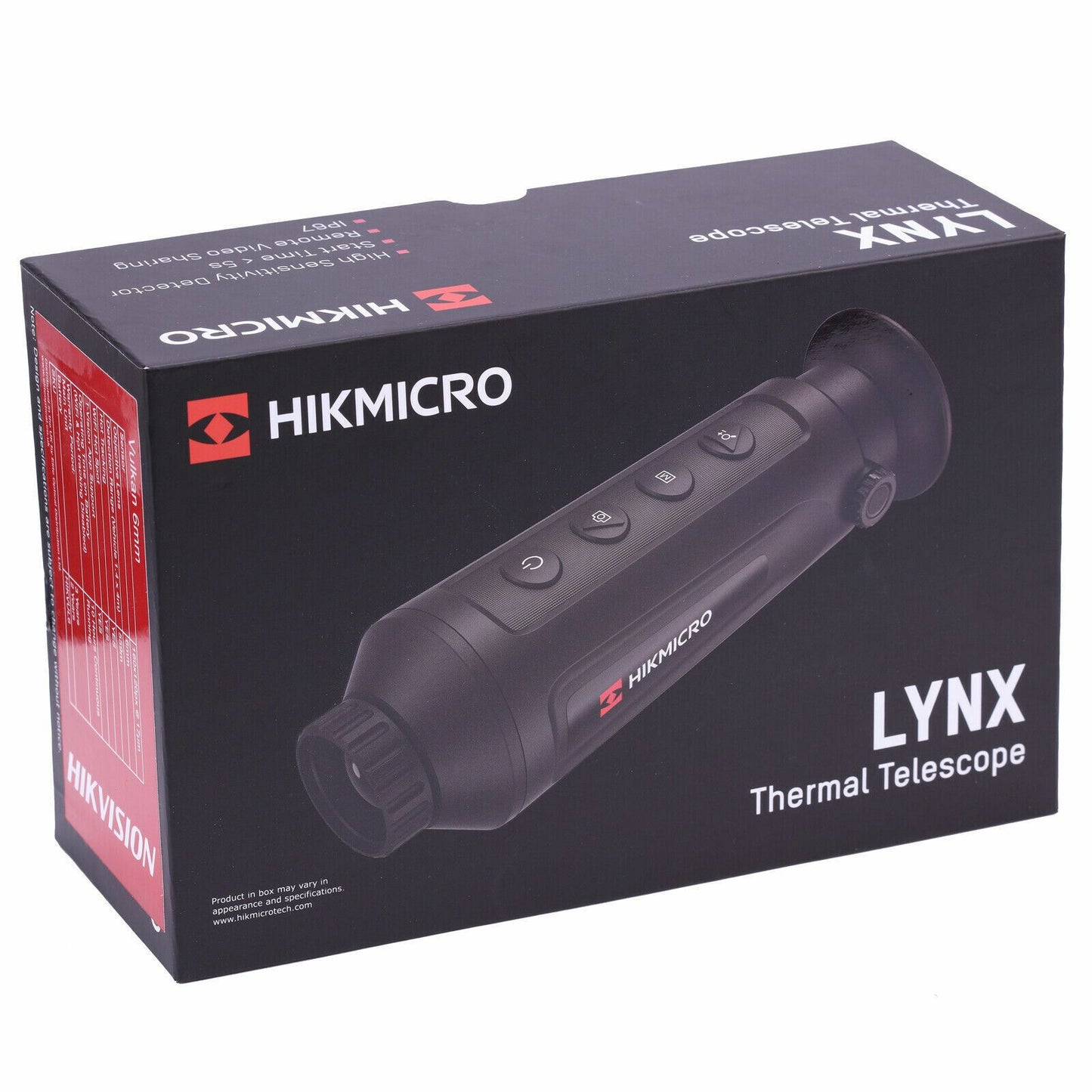

Brand New UK Stock, boxed with full Guarantee

The HIK Micro Lynx Pro 19mm bridges the gap between the 15mm and 35mm models by introducing many of the features found on the premium models into a more cost-effective package.

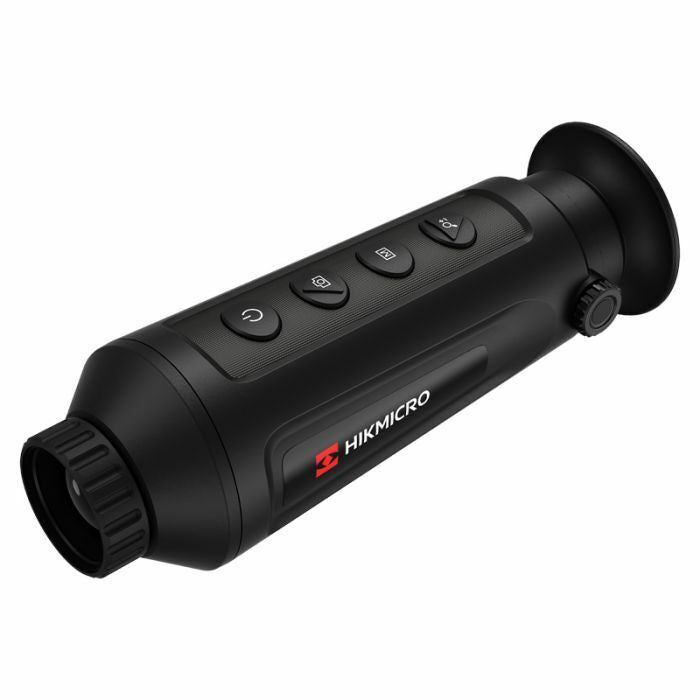

The Lynx Pro is built on the same compact chassis as the popular, pocket-sized 15mm model from HIK Micro but with the key additional feature of a focus ring around the objective lens. This allows you to precisely adjust the image to optimise your view over a wide range of distances.

The Lynx Pro is the first Thermal Monocular from HIK Micro to use a 384x288px 12µm sensor. This change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target) whilst also helping to reduce the cost of the unit.

HIK has also included the large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.

You will find all of the usual HIK Micro features; 4 colour profiles, digital magnification up to 8x and T-Vision App compatibility; Connect, Stream and Record to your smart phone.

35mK NETD Rating - one of the most sensitive sensors available on the market, detecting even the smallest temperature differences!

Objective Focus Ring - precisely adjust the image to optimise your view over a wide range of distances.

384x288px 12µm sensor - this change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target).

1280 x 960px LCOS Screen - featuring the same large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.

Hot Track - activate Hot Tracking and your Lynx Pro will highlight the hottest spot detected in the current frame with a green crosshair.

4 Colour Profiles

8x Digital Magnification

T-Vision App compatibility - Connect, Stream and Record to your Smart Phone.

MAIN



Sensor

384×288px @ 12µm

Objective Lens

19mm

Detection Range (Vehicle 1.4 x 4m)



Detection Range (Human 1.8 x 0.5m)

897 m




SENSOR



Type

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution, pixels

384 × 288 px

Pixel pitch, µm

12µm

Frame rate, Hz

50 Hz

NETD

<35mK




OPTICS



Objective lens

F1.0

Magnification (Optical)

1.86x

Magnification (Digital)

1x, 2x, 4x, 8x

Field of view

13.8° × 10.4° (H × V)




DISPLAY



Type

10 mm LCOS

Resolution, Pixels

1280 x 960

Colour Palettes

Black Hot, White Hot, Red Hot, Fusion




Video Recorder



Video / Photo resolution



Video / Photo format



Build in memory, Gb

8 Gb




Additional features



Hot Tracking

YES

WiFI hot spot

YES

T-Vision App support

YES




Environmental



Degree of protection, IP code

IP67

Dust protection

Protected against dust ingress

Water protection

Protected against temporary submersion in water

Operating temperature range

-20 °C to 55 °C




WEIGHT & SIZE



Dimensions, mm

171 mm × 61 mm × 57 mm

Weight, kg

0.31 kg




POWER SUPPLY



Operating time on battery
(WiFi & Hot tracking disabled)

7.5 hours continuous running

Charging interface

USB-C

Battery capacity after 1000 cycles

80%




Warranty Period
Main Unit
Battery

3 Years
2 Years

Specification

Brand

HIK Micro

Popularity

HIK Micro Lynx PRO 19mm 35mK 384x288 12um Smart Thermal Monocular

SKU

HM-LH19

Unit Type

Thermal

Colour Palettes

Yes

Detection Range

900m

Display Resolution

1280x960

Display Type

LCOS

FOV @ 100 yards

10.0°

Magnification (Digital)

8x

Magnification (Optical)

1.9x

NETD

<35mK

Objective Lens Diameter

19mm

Operating Temperature

-20/+55°C

Pixel Pitch

12μm

Refresh Rate

50HZ

Sensor Resolution

384x288

Video / Sound Recording

Yes

WiFi

Yes
