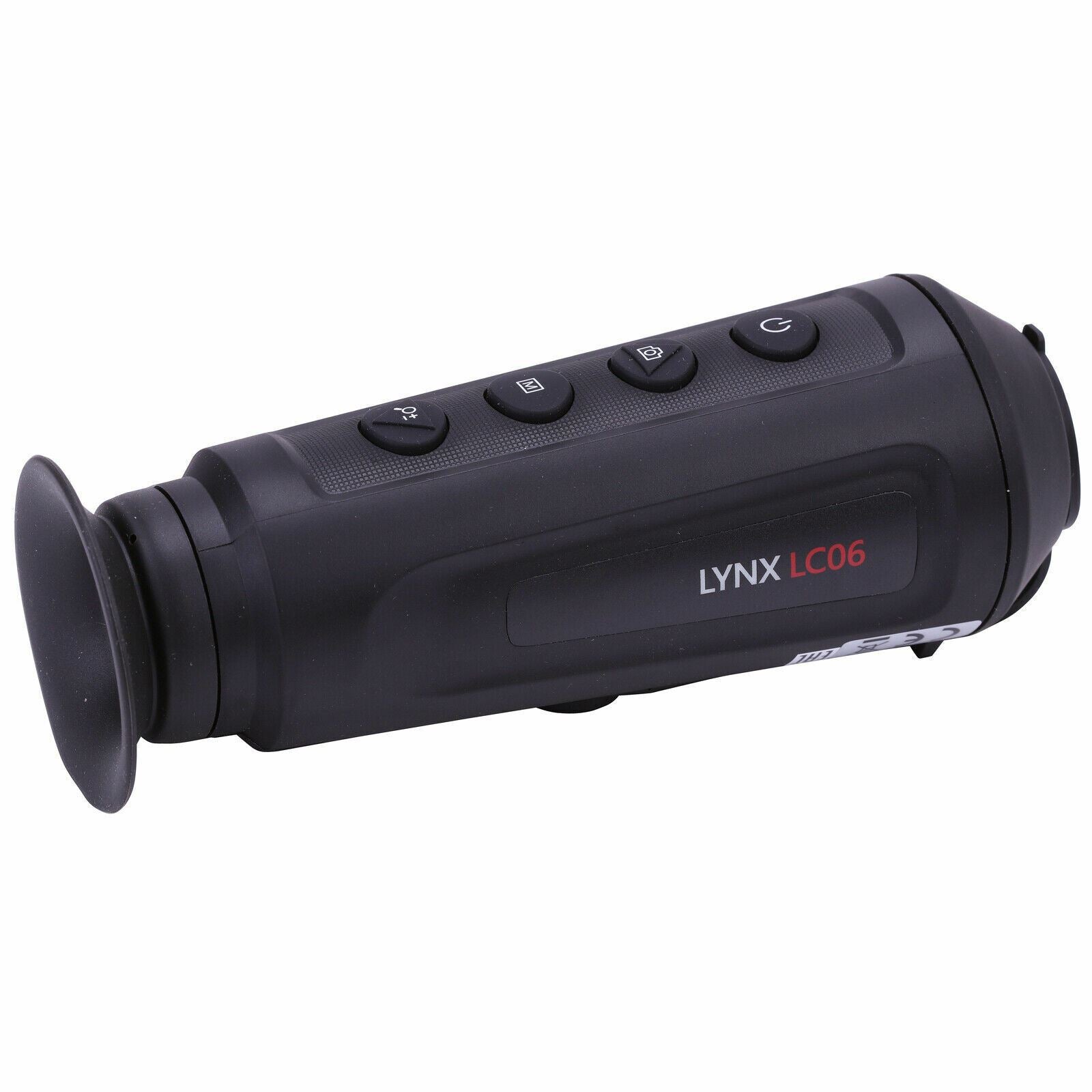

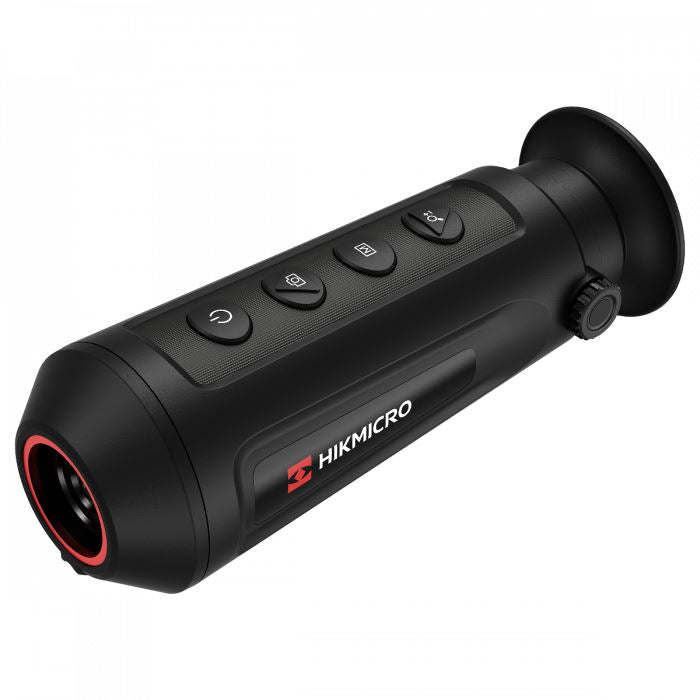

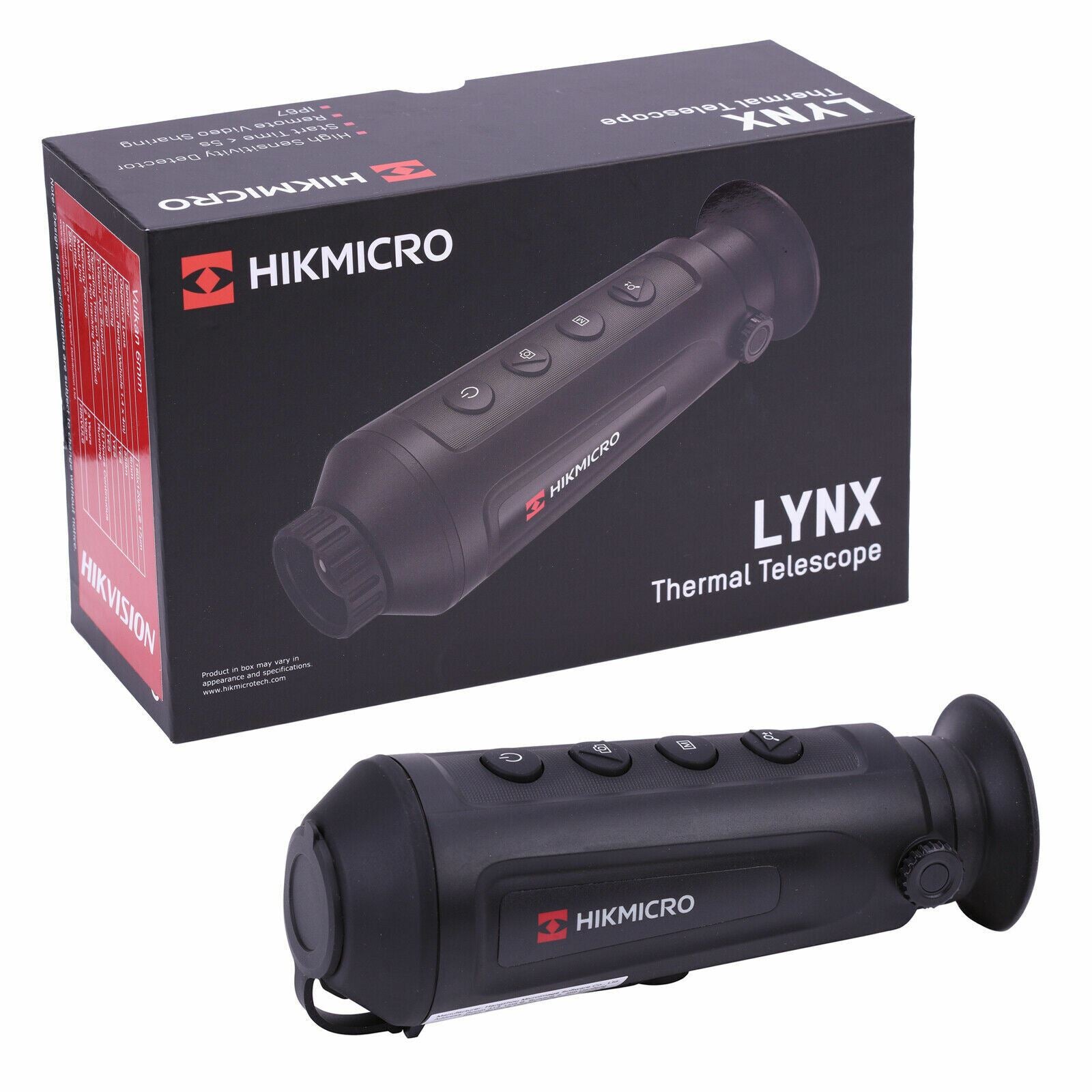

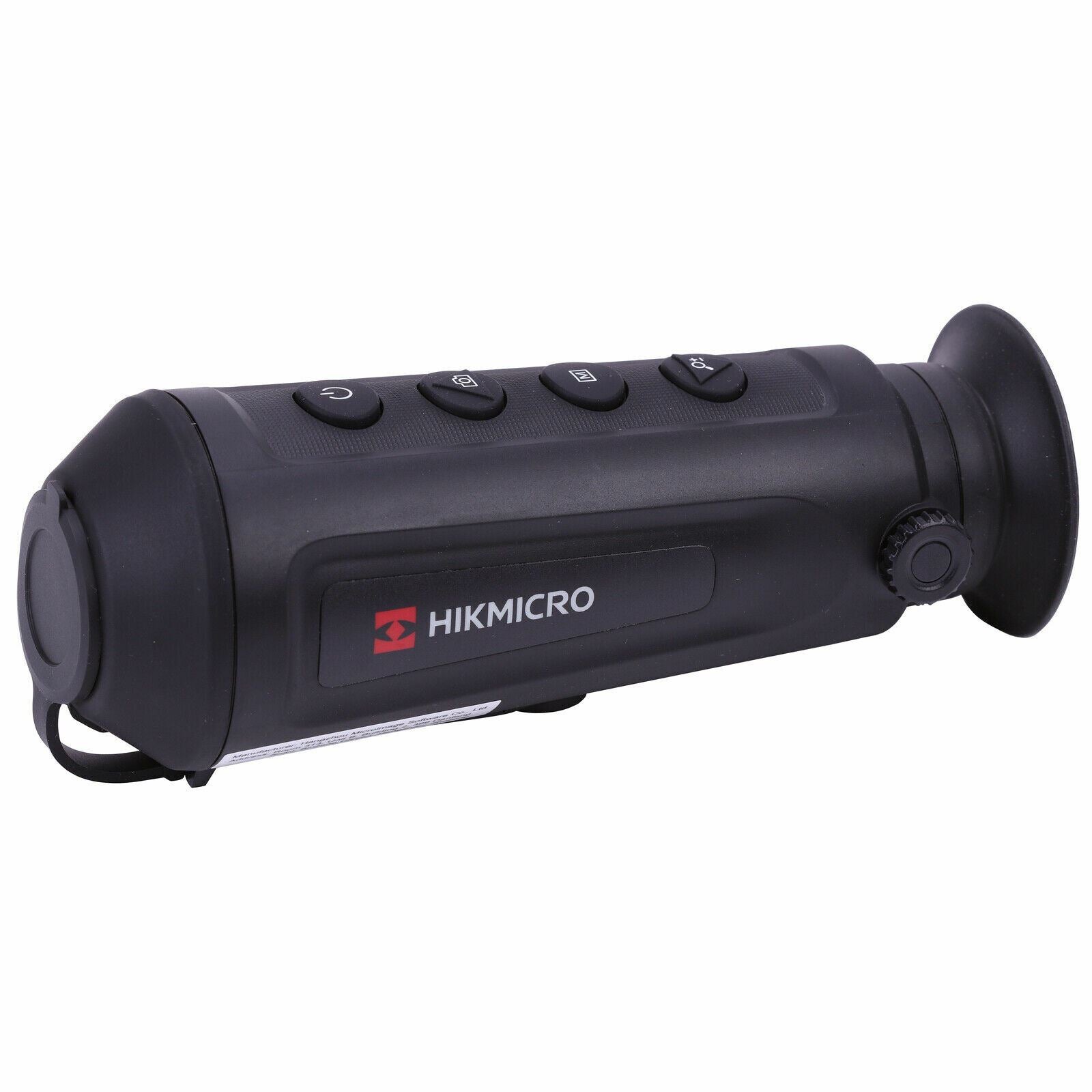

HIK Micro Lynx Thermal 6mm Monocular 35mK Smart Night Vision # HM-LC06 (UK) BNIB

HIK Micro Lynx Thermal 6mm Monocular 35mK Smart Night Vision # HM-LC06 (UK) BNIB

Regular price £379.95
Regular price Sale price £379.95
Sale Sold out
Taxes included.

HIK Micro Lynx Thermal 6mm Monocular 35mK Smart Night Vision # HM-LC06

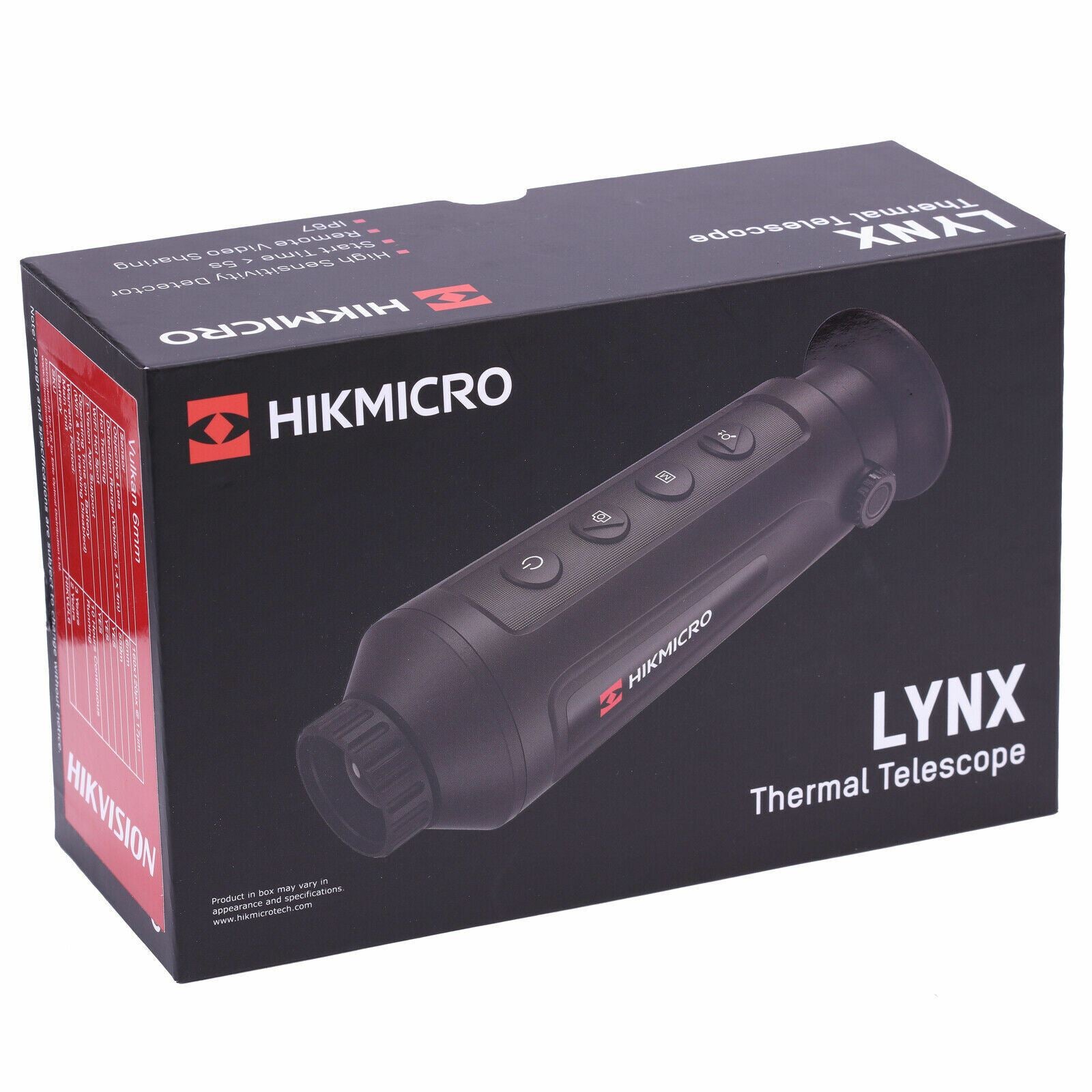

Brand New UK Stock, boxed with full Guarantee

The HIK Micro Lynx 6mm delivers a high-quality thermal image and packs a host of features normally reserved for high-end thermal spotters.

The 160x120px, 17µm thermal sensor (35mK NETD Rating), and HIK software deliver a detailed image to the screen. The WiFi and the dedicated app allow you to take complete control of the unit's settings and features from your smartphone.

35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!

IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.

Battery life = 10hrs of continuous running!

This is all backed up by a 3 year UK warranty on the main unit and a 2 year battery warranty.

Features

HIK Micro Lynx 6mm 35mK 160x120 17um Smart Thermal Monocular

HIK VISION THERMAL SENSOR

The HIK Micro 160x120px, 17µm thermal sensor with a NETD rating of 35mK produces a high-quality thermal image.

35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!

Combine this with the HIK software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.

T-VISION APP: Connect – Control – Stream

Connect your smartphone and take control of all features of the Lynx 6mm.

The T-Vision app allows you to stream the output in real time allowing you to share your viewpoint with a friend.

You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use app.

HOT TRACK

Activate Hot Tracking and your Lynx 6mm will highlight the hottest spot detected in the current frame with a green crosshair.

This is useful to highlight small heat sources as you scan around.

This feature can also be deactivated in the menu or controlled in the App.

Features:
Sensor 160×120px @ 17µm
Objective Lens 6mm
Detection Range (Vehicle 1.4 x 4m) 559m
Detection Range (Human 1.8 x 0.5m) 182m

SENSOR
Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels 160×120 px
Pixel pitch, µm 17µm
Frame rate, Hz 50 Hz
NETD Rating 35mK

OPTICS
Objective lens F1.1
Magnification (Optical) 0.6x
Magnification (Digital) 1x, 2x, 4x,
Field of view 24.7° × 18.7° (H × V)

DISPLAY
Type 5.08mm, LCOS
Resolution, Pixels 720 × 540
Colour Palettes Black Hot, White Hot, Red Hot, Fusion

VIDEO & SOUND
Video Recorder YES
Sound Recorder NO
Built-in memory, Gb 8 Gb

ADDITIONAL FEATURES
Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES

ENVIRONMENTAL
Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range -20 °C to 55 °C

WEIGHT & SIZE
Dimensions, mm 158 mm × 61 mm × 57 mm
Weight, kg 0.25 kg

POWER SUPPLY
Operating time on battery
(WiFi & Hot tracking disabled) 10 hours of continuous running
Charging interface USB-C
Battery capacity after 1000 cycles 80%
USB cable supplied, no mains adaptor included

Specification

Brand

HIK Micro

Popularity

HIK Micro Lynx 6mm 35mK 160x120 17um Smart Thermal Monocular

SKU

HIKLC06

Unit Type

Thermal

Colour Palettes

Yes

Detection Range

550m

Display Resolution

720x540

Display Type

LCOS

FOV @ 100 yards

24°

Magnification (Digital)

4x

Magnification (Optical)

0.6x

NETD

<35mK

Objective Lens Diameter

6mm

Operating Temperature

-20/+40°C

Pixel Pitch

17μm

Rangefinder

Stadiametric

Refresh Rate

50HZ

Sensor Resolution

160x120

Video / Sound Recording

Yes

WiFi

Yes
