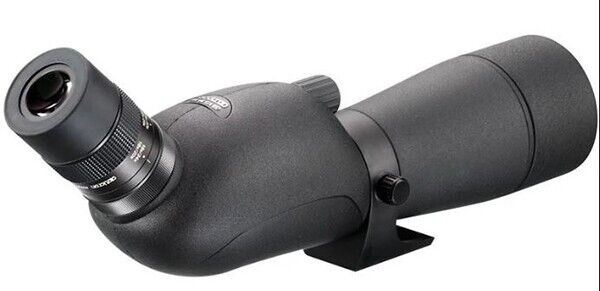

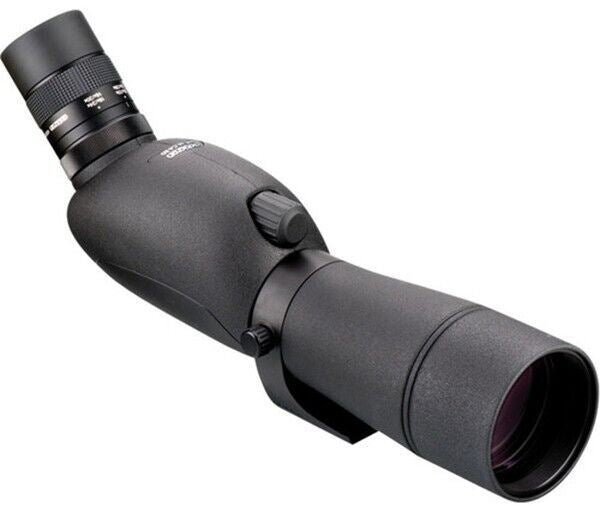

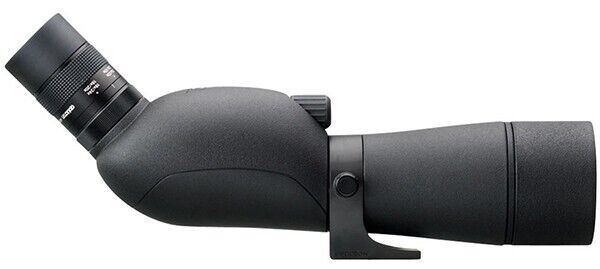

Opticron HR 66 GA ED Angled + SDL v3 Spotting Scope #41003/41270 (UK) EXD2015

• Angled Viewing
• 66mm Objective Lens
• SDL v3 Zoom Eyepiece
• Five-Element Apochromatic Objective Lens
• Two Extra-Low Dispersion Elements
• N-Type Extra Wide Band Multi-coating
• Nitrogen-Filled: Water, Dust, & Fog-proof
• Magnesium Alloy Body and Rubber Armoring
• Central Focusing Wheel
• Retractable Hood, Rotating Tripod Collar

Built to withstand use in harsh climates while still offering notable optical quality, the angled viewing HR 66 GA ED/45 66mm Spotting Scope from Opticron features a five-element apochromatic objective lens system. With two Extra-low Dispersion (ED) glass elements, it maintains high viewing resolution and clarity with chromatic aberrations. To further benefit this design, all air-to-glass surfaces have N-type extra-wide-band multi-coating that improves contrast, color accuracy, and transmission.

Complementing the optical design of this scope is an equally robust magnesium alloy housing that has been filled with nitrogen for protection against fogging-up and moisture. Textured rubber armoring improves handling, as does a centrally-located focusing wheel. The scope also provides a 1/4"-20 tripod mount on a rotating collar and a retractable lens hood.

Optical Performance

• 66mm objective diameter
• High definition five-element apochromatic objective lens system with two extra-low dispersion elements works to maximize viewing resolution and eliminate nearly all chromatic aberrations
• An Opticron N-type extra wide band multi-coating has been applied to all air/glass surfaces in order to maintain light transmission with improved contrast and color fidelity
• Eyepiece includes eight elements in five groups for wide-field definition throughout the zoom range

Use and Handling

• Retractable lens hood
• Integrated rubber objective lens cover
• Centrally positioned focusing wheel
• +/-90° rotating tripod collar
• Rotating eye cup

Construction Details

• Well-suited to use in extreme temperatures or climates
• Magnesium alloy body with texture rubber armoring
• Nitrogen-filled for water and fog-proof performance
• Hermetically-sealed against dust and moisture

The Opticron SDL v3 Zoom Eyepiece delivers a wide field of view in a compact, lightweight package. Designed with a 3x magnification range for maximum versatility, the eyepiece delivers superior cross-field definition and exceptional viewing comfort with or without glasses.

Spotting Scope Magnifications

• HR 66 =  18-54x

Features

• 3x magnification (18x-54x on HR66 Scope)
• Superior cross-field definition with exceptional viewing comfort
• Long eye relief
• Waterproof
• 4-Stage twist-type eyecup

What’s Included?

• Opticron HR 66 GA ED/45 66mm Spotting Scope (Angled Viewing)
• SDL v3 Zoom Eyepiece
• Objective Lens Cover
• Eyepiece Receptacle Cover
• Limited Lifetime Warranty

Specification
