SkyWatcher Wave 100i Strainwave WiFi Bluetooth GOTO Mount Dual Saddle #20982 SO

SkyWatcher Wave 100i Strainwave WiFi Bluetooth GOTO Mount Dual Saddle #20982

Brand New UK Stock, boxed with full Guarantee

HIGH TORQUE. HIGH PRECISION. HIGH PORTABILITY.

Taking advantage of the strain wave design with its high torque and compact construction, Sky-Watcher's WAVE mounts deliver high precision and power in an affordable and portable package. With exclusive features found on no other strain wave mounts, the new WAVE series is a serious update and upgrade to Sky-Watcher’s already immensely popular family of astronomy mount platforms.

The Sky-Watcher WAVE-100i is built based on a strain wave or harmonic gearing design. This drive gear design provides a number of benefits including highly precise tracking with minimal backlash for capturing long exposure images, and a compact design with a remarkable payload to weight ratio for the use of various equipment while still being convenient for transportation.

The WAVE-100i, boasting 10kg of payload capacity (15kg with optional counterweight kit), whilst being incredibly compact and lightweight. Sky-Watcher’s WAVE mounts also feature both EQ and AZ tracking modes with RA and DEC home positions, Dual-Fit Saddles, 0–90º latitude range, Wi-Fi & Bluetooth capability, RA power-off braking,  and a red backlit latitude display and bubble level to make your setup routine that much easier.

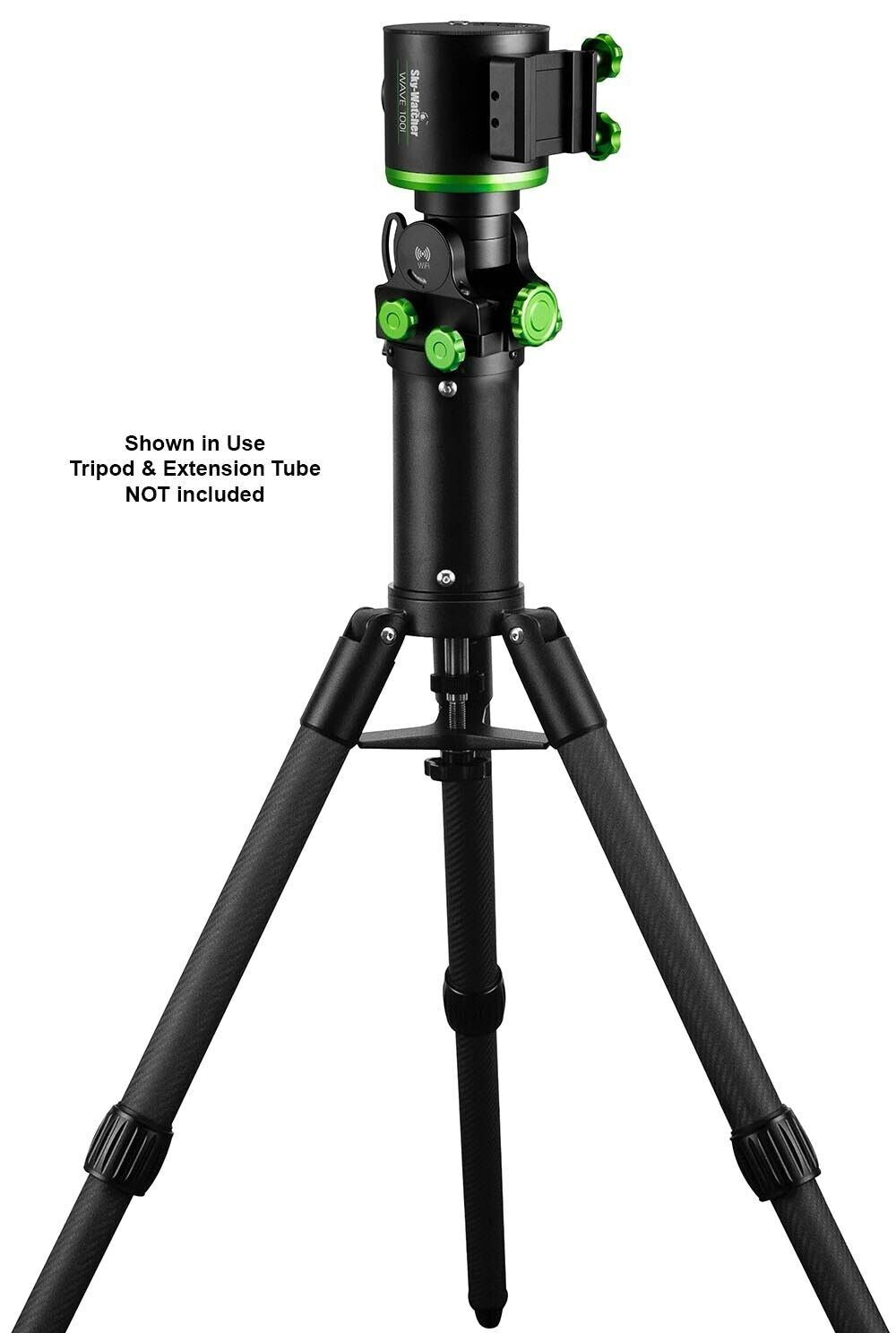

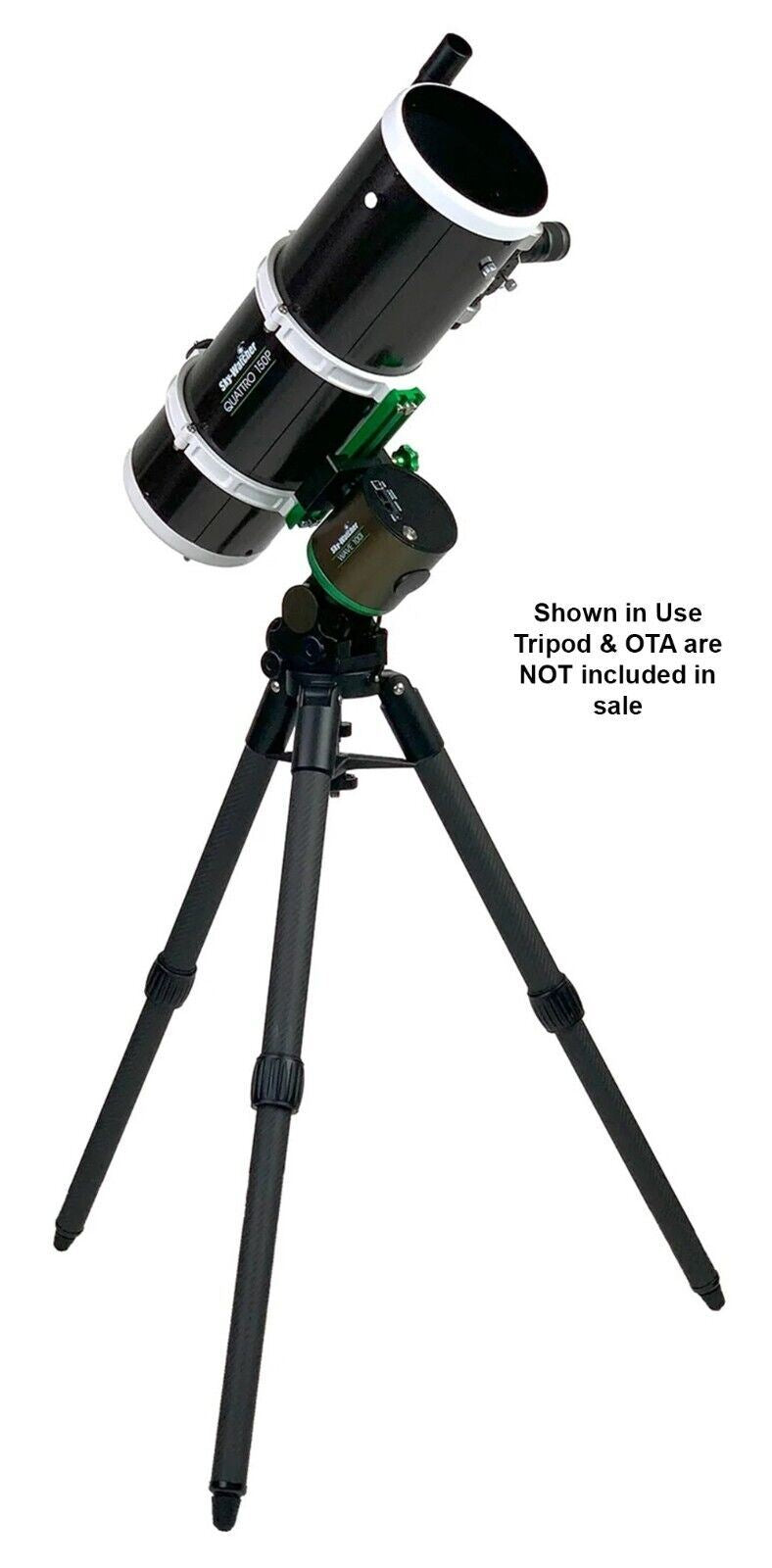

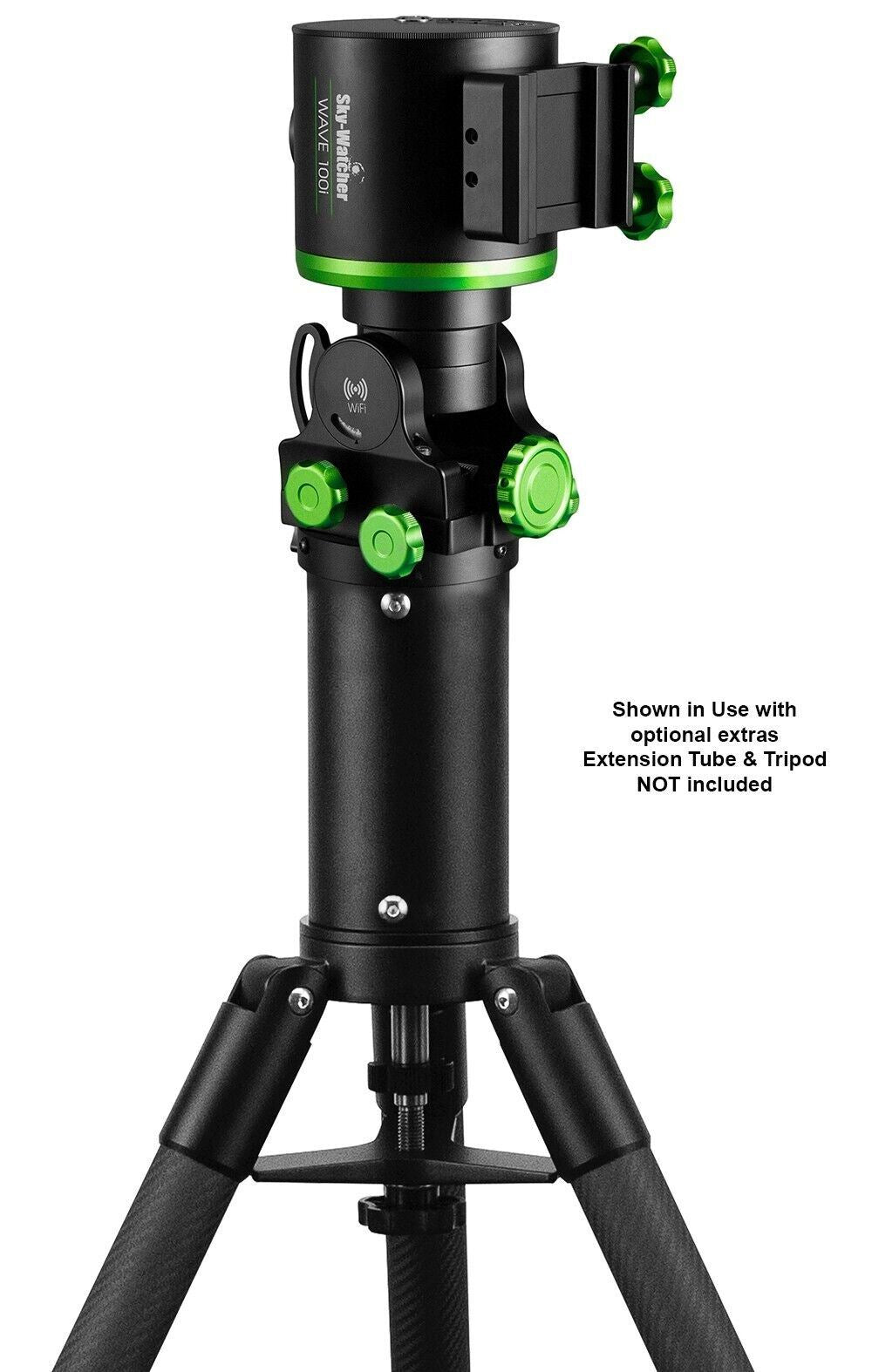

*Please note the Tripod, Extension Tube and Telescope OTA depicted in product photos are not included*

SPECIFICATION

• Working Mode: Equatorial or Alt-Azimuth

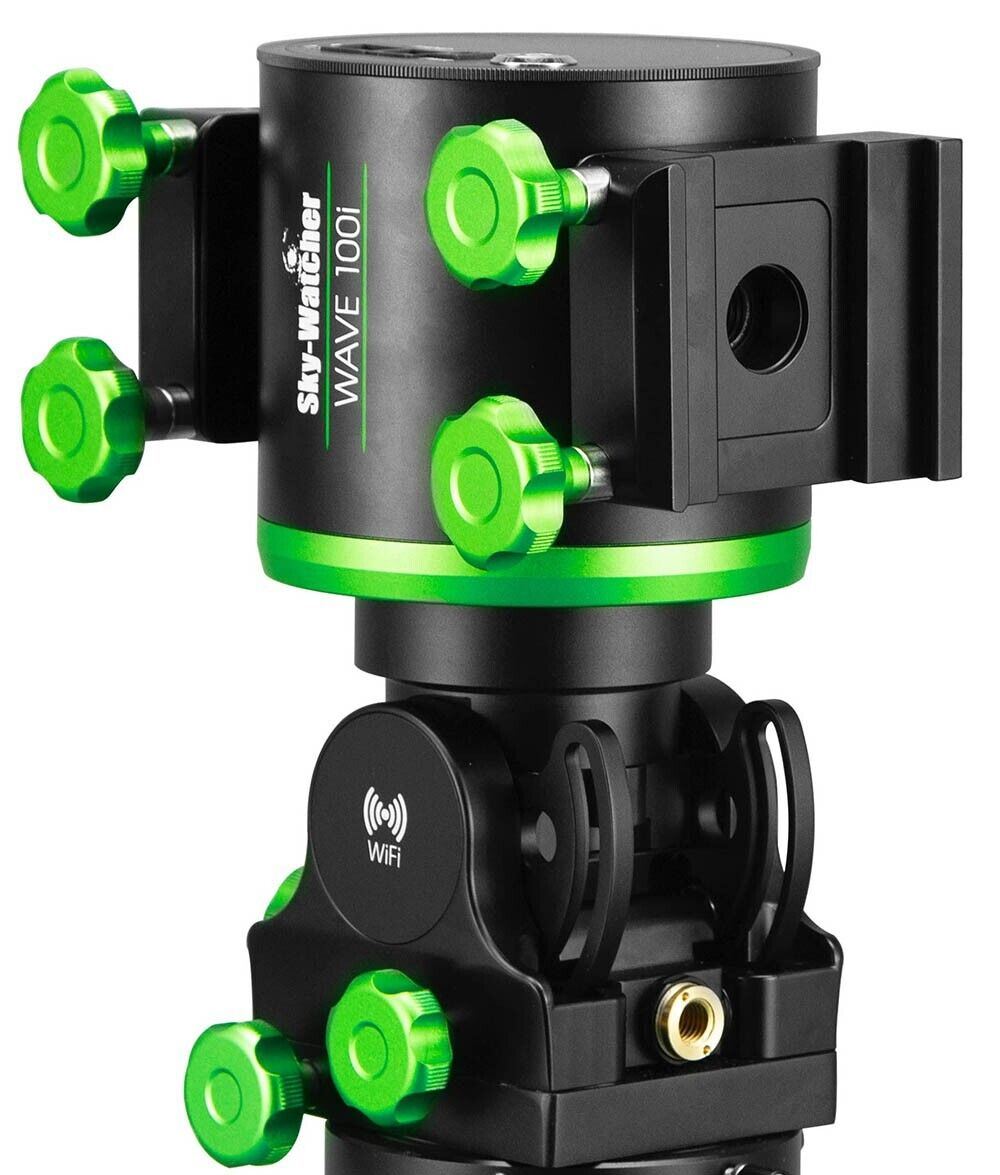

• Supplied with Dual-Fit 45mm/75mm Saddle & Secondary 45mm/75mm Saddle.
• Mount weight: 4.3kg
• Payload Capacity (without Counterweight): 10kg
• Payload Capacity (with Counterweight: 15kg
• Counterweight Kit, Extension Tube and Tripod Available Separately
• Transmission Mode: Belt-Driven Stepper Motor with Harmonic Reducer
• RA Harmonic spec: 17-100. DEC Harmonic spec: 14-100
• Highest Speed: 2400x (10º/second)
• Transmission Reduction Ratio: 300:1 (both axes)
• Latitude Adjustment Range: 0°-90°

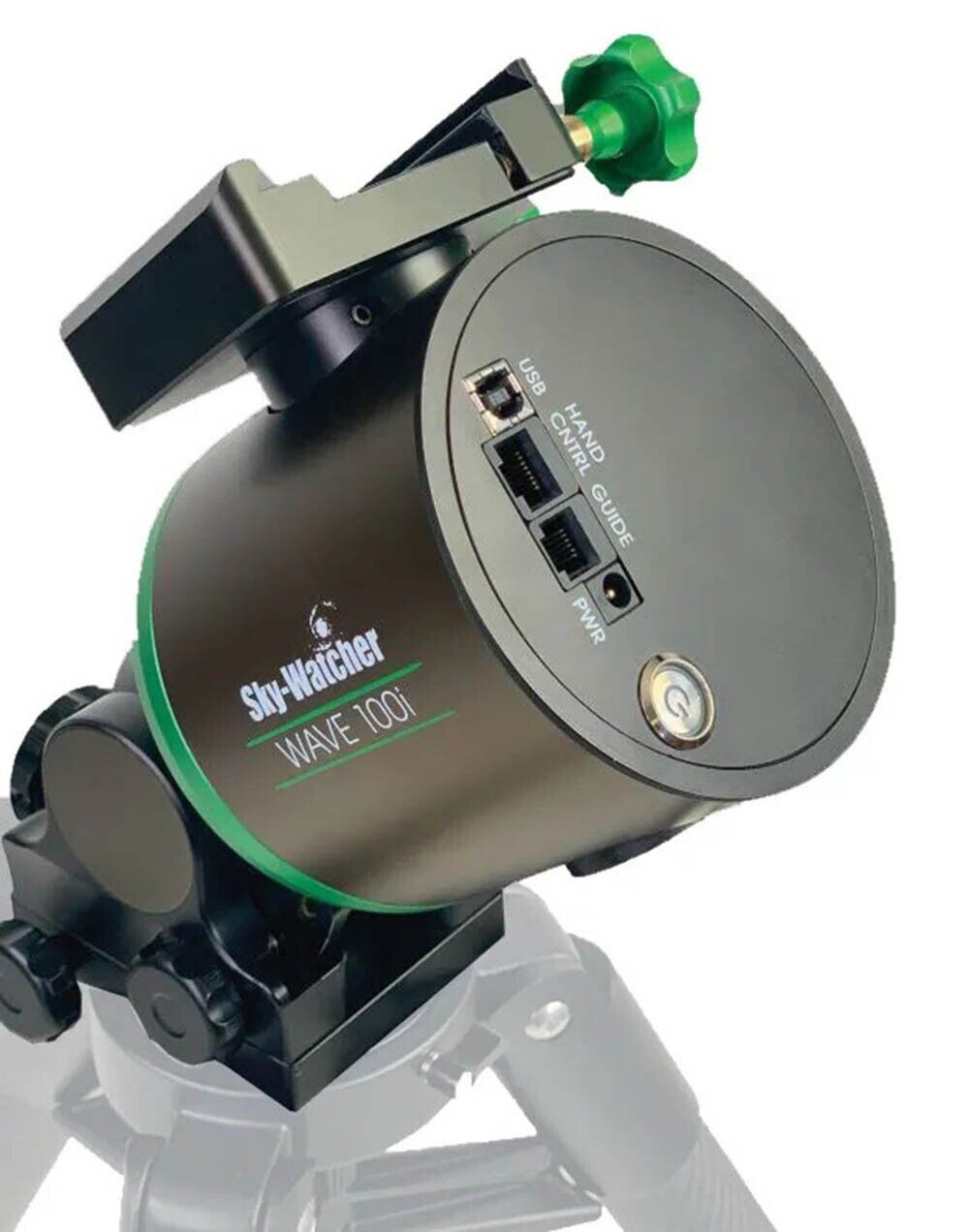

• Connection Sockets: USB-B, Autoguider, SynScan Handset & Power Input
• R.A. Lock Function (for easy counterweight installation)
• Controllable by Wi-Fi and Bluetooth or optional SynScan Handset (available separately)
• Compatible with the Sky-Watcher SynScan PRO app for Windows, iOS and Android devices.
• Also compatible with Stellarium, SkySafari & Cartes du Ciel and third-party drivers or software like ASCOM or INDI
• Power Requirement: 12V 2A DC
• RA Power-Off Braking Function
• RA and DEC Home Position and Limits function
• Convenient Red LED Illumination for Latitude Scales & Bubble Level
• Precision CNC Machined Body
• Foam-Lined Carrying Case
