SkyWatcher Wave 150i Strainwave WiFi Bluetooth GOTO Mount Hrad #20983 SO (UK)NEW

SkyWatcher Wave 150i Strainwave WiFi Bluetooth GOTO Mount Hrad #20983 SO (UK)NEW

Regular price £1,999.00
Regular price Sale price £1,999.00
Sale Sold out
Taxes included.

SkyWatcher Wave 150i Strainwave WiFi Bluetooth GOTO Mount Dual Saddle #20983

Brand New UK Stock, boxed with full Guarantee

HIGH TORQUE. HIGH PRECISION. HIGH PORTABILITY

Taking advantage of the strain wave design with its high torque and compact construction, Sky-Watcher's WAVE mounts deliver high precision and power in an affordable and portable package. With exclusive features found on no other strain wave mounts, the new WAVE series is a serious update and upgrade to Sky-Watcher’s already immensely popular family of astronomy mount platforms.

The Sky-Watcher WAVE-150i is built based on a strain wave or harmonic gearing design. This drive gear design provides a number of benefits including highly precise tracking with minimal backlash for capturing long exposure images, and a compact design with a remarkable payload to weight ratio for the use of various equipment while still being convenient for transportation.

The WAVE-150i, boasting 15kg of payload capacity (25kg with optional counterweight kit), whilst being incredibly compact and lightweight. Sky-Watcher’s WAVE mounts also feature both EQ and AZ tracking modes with RA and DEC home positions, Dual-Fit Saddles, 0–90º latitude range, Wi-Fi & Bluetooth capability, RA power-off braking,  and a red backlit latitude display and bubble level to make your setup routine that much easier.

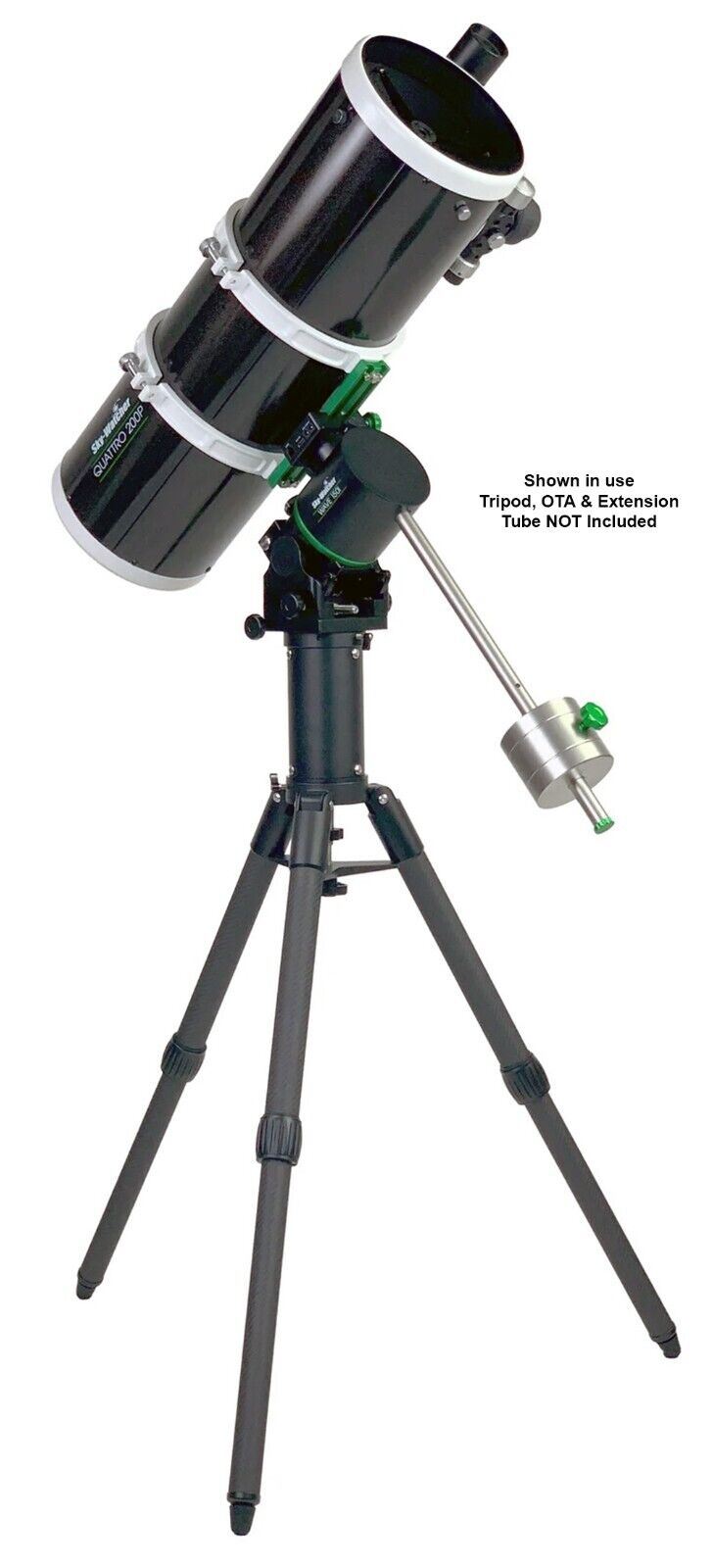

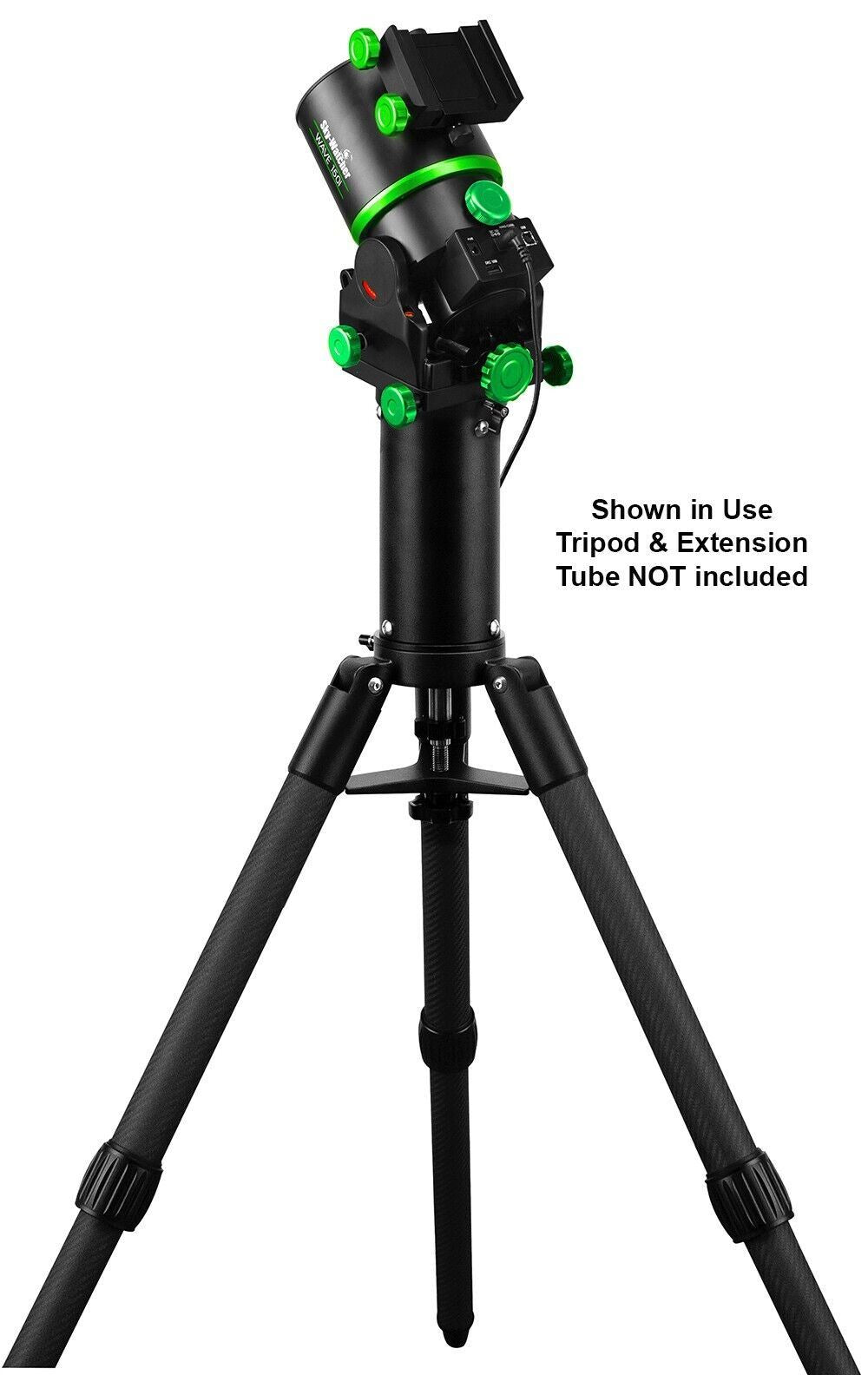

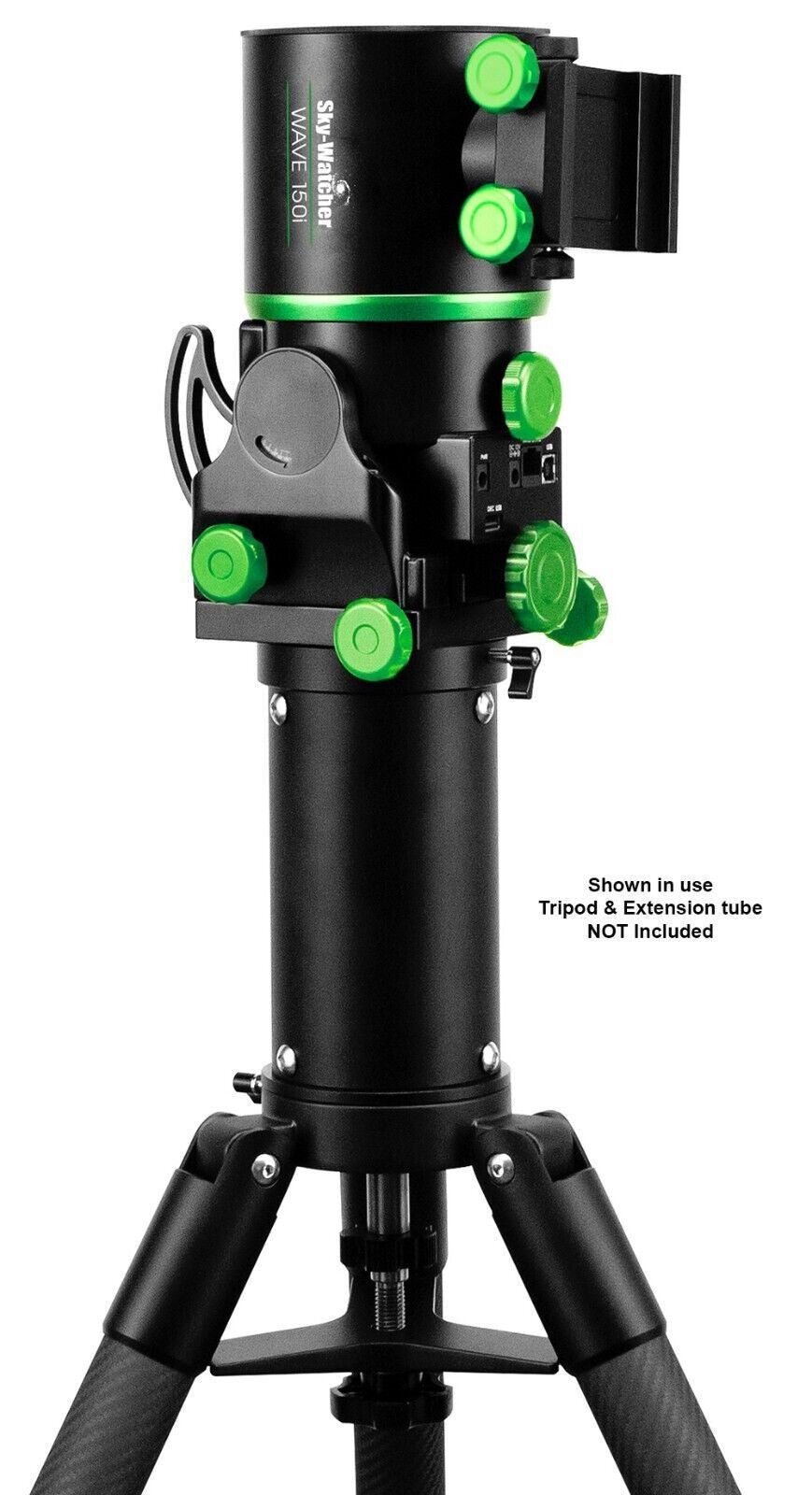

*Please note the Tripod, Extension Tube, Counterweight Kit and Telescope OTA depicted in product photos are not included*

SPECIFICATION

  • Working Mode: Equatorial or Alt-Azimuth
  • Supplied with single Dual-Fit 45mm/75mm Saddle.
  • Mount weight: 5.8kg
  • Payload Capacity (without Counterweight): 15kg
  • Payload Capacity (with Counterweight: 25kg
  • Tripod, Counterweight Kit, Extension Tube and Tripod Available Separately
  • Transmission Mode: Belt-Driven Stepper Motor with Harmonic Reducer
  • RA Harmonic spec: 17-100. DEC Harmonic spec: 14-100
  • Highest Speed: 2400x (10º/second)
  • Transmission Reduction Ratio: 300:1 (both axes)
  • Latitude Adjustment Range: 0°-90°

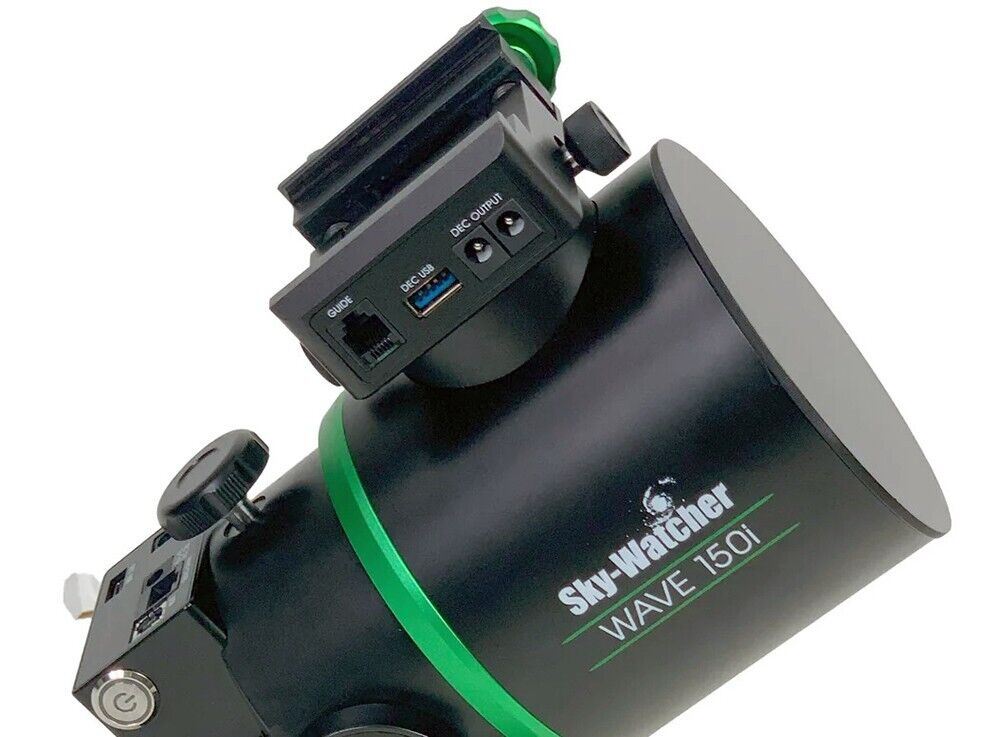

  • Connection Sockets: USB-B, Autoguider, SynScan Handset & Power Input
  • Cable Management Function
  • R.A. Lock Function (for easy counterweight installation)
  • Controllable by Wi-Fi and Bluetooth or optional SynScan Handset (available separately)
  • Also compatible with Stellarium, SkySafari & Cartes du Ciel and third-party drivers or software like ASCOM or INDI
  • Compatible with the Sky-Watcher SynScan PRO app for Windows, iOS and Android devices.
  • Power Requirement: 12V 2A DC
  • RA Power-Off Braking Function
  • RA and DEC Home Position and Limits function
  • Convenient Red LED Illumination for Latitude Scales & Bubble Level
  • Precision CNC Machined Body
  • Foam-Lined Carrying Case
