Swarovski ATX 25-60 x 85mm Spotting Scope KIT with Eyepiece Angled

Swarovski ATX 25-60 x 85mm Spotting Scope KIT with Eyepiece Angled

Regular price £3,438.00
Regular price Sale price £3,438.00
Sale Sold out
Taxes included.
  • SwaroVision Technology
  • 25-60x Magnification
  • Fully Multicoated HD Lenses
  • Waterproof / Fog-proof Construction
  • Lightweight Magnesium Housing
  • Sculpted Rubber Armoring
  • Digi-scoping Compatible
  • Angled Viewing
  • Compatible with ATX Spotting Scope
  • SWARODUR/SWAROTOP High-Contrast Coatings
  • SWAROCLEAN Nonstick Coating
  • Fog and Waterproof Construction
  • 20mm Eye Relief
  • Twist-In Eyecups
  • Eyepiece Module Required
  • 85mm Objective Lens
  • Field-Flattener Lens System
  • Extra-Low Dispersion Fluoride HD Glass
  • SWAROTOP and SWARODUR Coatings
  • Nitrogen Filled, Water and Fog-proof
  • Durable and Lightweight Magnesium Body
  • Arca-Swiss-Compatible Tripod Shoe
  • Rotating Tripod Collar
  • Large Center-Focusing System
  • Integrated Tripod Collar
  • Made in Austria

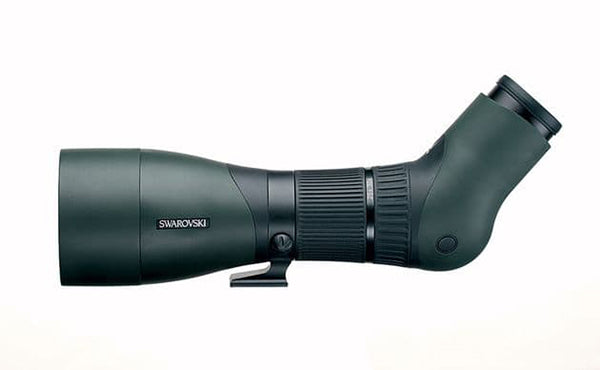

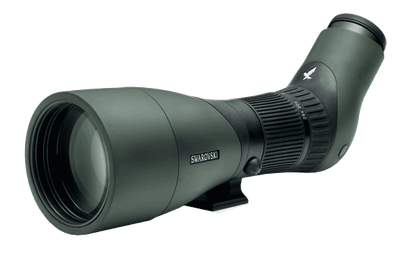

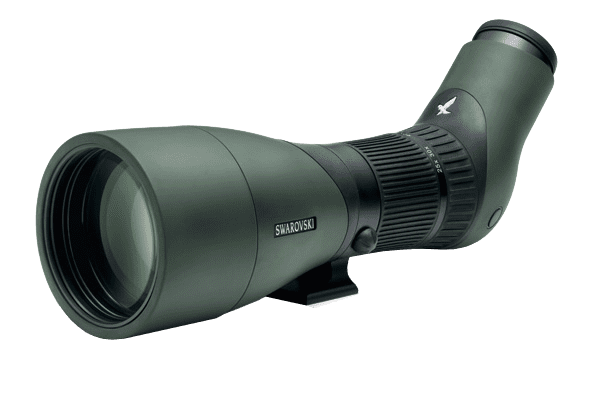

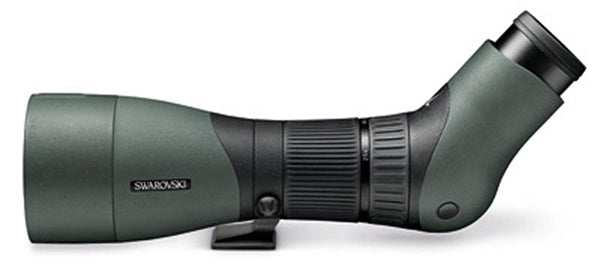

The Swarovski ATX-85 25-60x Spotting Scope with Eyepiece is a two-piece Photography Shop Kit including the X-Series 85mm Modular Objective Lens and the ATX Modular Zoom Eyepiece. This objective and eyepiece combination creates a high-magnification angled-view spotting scope that delivers the image quality and reliability that Swarovski's SwaroVision optics are known for. The wide angle 71-57° apparent field of view, 11.8 foot close focusing distance, 20mm eye relief, and optional digi-scoping adapters make this spotting scope ready for almost any glassing application.

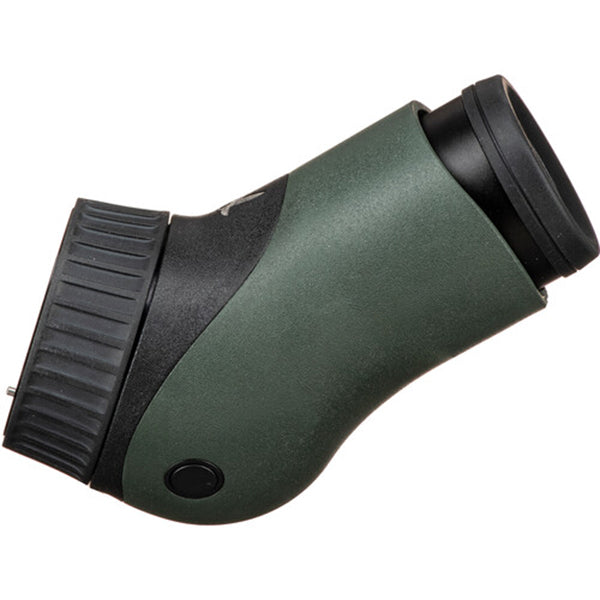

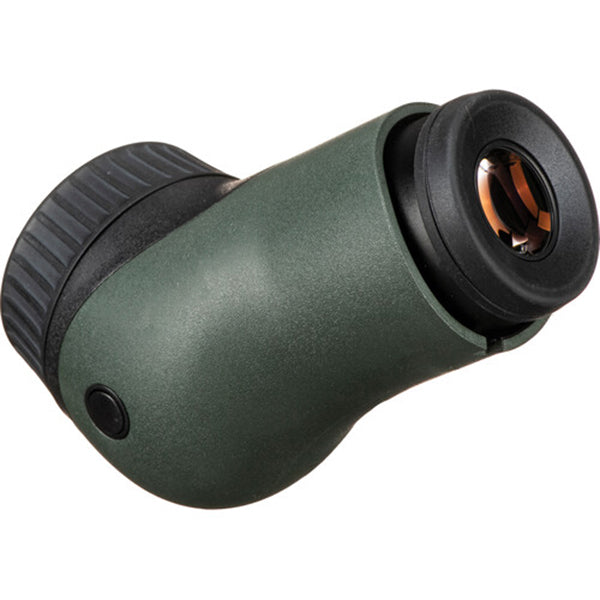

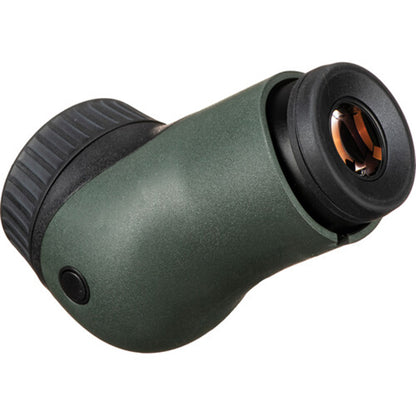

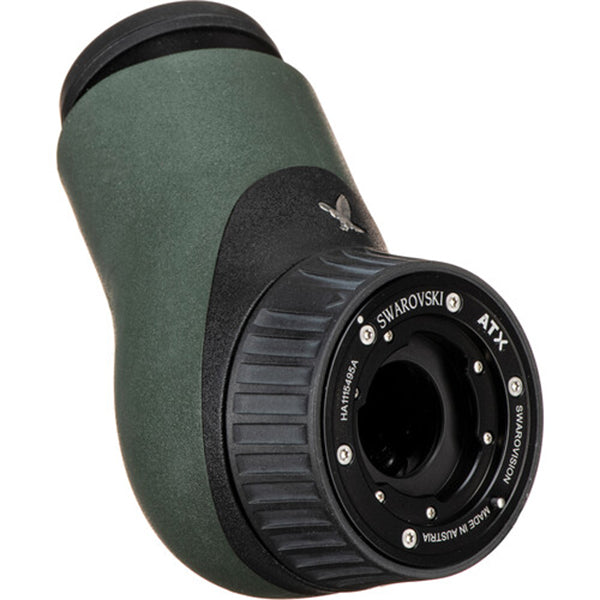

The ATX Spotting Scope Modular Zoom Eyepiece (angled viewing) from Swarovski is a wide-angle eyepiece specifically engineered for the ATX spotting scope series. The angled configuration is well-suited for digi-scoping and long-duration observation with your premium Swarovski optics. This eyepiece is compatible with the ATX-65, ATX-85, and ATX-95 objective assemblies. Mounted with either the ATX-65 or ATX-85 objective assembly, this zoom eyepiece has a magnification range of 25-60x; when mounted on the ATX-95 model, the magnification range is 30-70x.

This configuration of the Modular Zoom Eyepiece seamlessly integrates with the DCB II and TLS APO digi-scoping adapters. These optional accessories from Swarovski allow you to transform your ATX spotting scope into a formidable digital imaging platform. The accessory adapters enable integration with point-and-shoot, mirrorless, and DSLR camera systems, and they feature the build-quality and thoughtful engineering you expect from Swarovski. Now your superior optics can be used to capture high-definition stills and video of that rare bird or butterfly in your sight.

Ergonomic handling and user-friendly functionality makes the ATX eyepiece an observer's delight. The eyepiece quickly attaches/detaches from the objective assembly's bayonet mount, making the scope easy to disassemble, transport, and store. Swarovski engineered the angled-view eyepiece's focus dial to precisely align with the zoom dial on the objective assembly, enabling one-handed adjustments to field of view and zoom. This feature is especially useful when tracking an object, requiring one hand to guide the tripod head. This eyepiece's generously wide viewing angle, extra-long eye relief, and click-stop twist-in eyecup makes using your ATX spotting scope a world-class glassing experience.

Optical Performance

  • 25-60x zoom range (with ATX-65, ATX-85)
  • 30-70x zoom range (with ATX-95 only)
  • Apparent angle of view: 71-57°
  • Angle of view: 2.37-1.3° (ATX-65, ATX-85), 1.98-1.09° (ATX-95 only)
  • SWAROCLEAN nonstick coating on ocular surface
  • Phase-corrected roof prisms

Use and Handling

  • Extra-long 20mm eye relief
  • Click-stop twist-in (and removable) eyecup
  • One-handed operation via side-by-side zoom and focus dials
  • Grooved zoom dial
  • Mounts seamlessly with ATX objective assembly
  • Digi-scoping compatible with point-and-shoot, mirrorless, and DSLR cameras

Construction Details

  • Lightweight and rugged housing
  • Supple yet durable rubber armor
  • Nitrogen-purged interior for fog and waterproof performance
  • -13 to 131°F (-25 to 55°C) operating temperature
  • Submersible to 13'

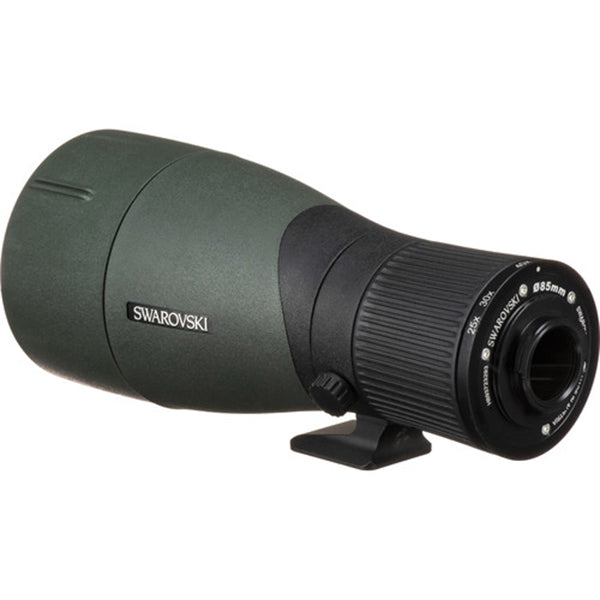

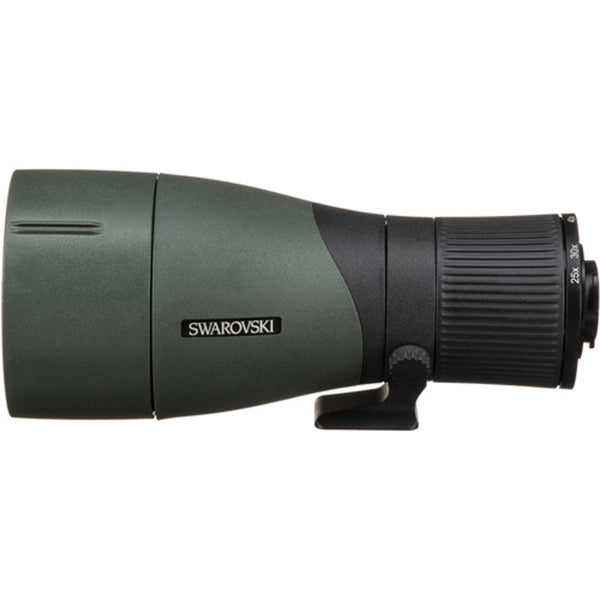

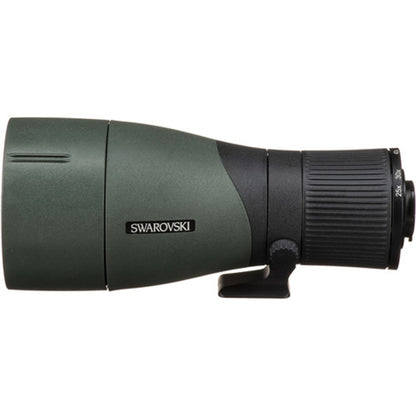

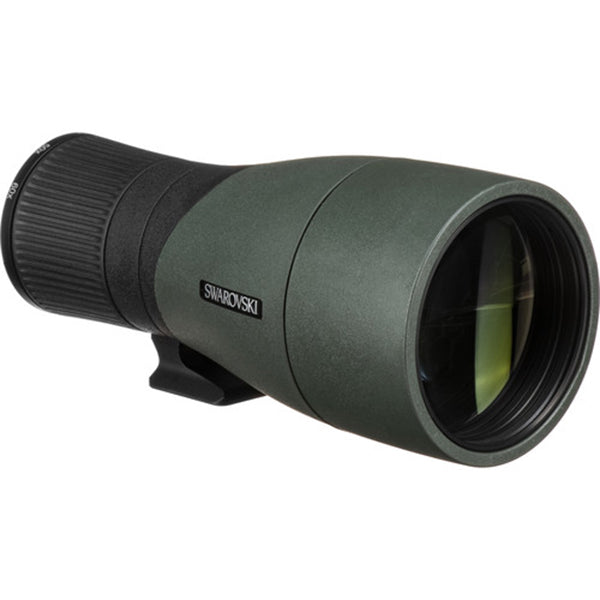

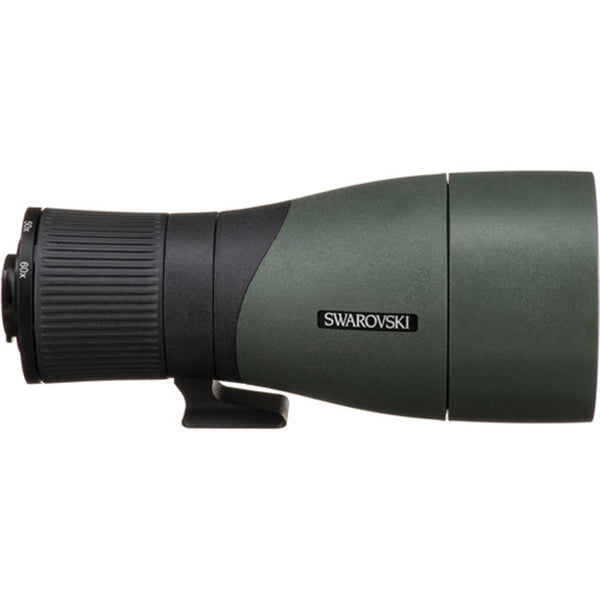

Representing the mid-sized option in their line of modular spotting scopes, the Swarovski Optik ATX/STX/BTX 85mm Objective Lens Module gets an updated tripod shoe that fits Arca-Swiss quick release plates, and will accept any of the three available eyepiece modules: straight (STX) or angled-viewing (ATX), or the binocular viewer (BTX). The bayonet mount for the eyepiece modules is backward compatible with the original ATX/STX modules, to make it easy for users to upgrade their objectives without needing a new eyepiece module. This larger objective versus the 65mm model draws in more light and produces a larger exit pupil to improve its low-light capabilities and make it an invaluable companion from dawn to dusk.

Optically, Swarovski combines the legendary image quality and world-class workmanship that nature enthusiasts, tactical professionals, and researchers have come to expect from the brand. The 85mm objective strikes a nice balance between light-gathering ability and portability, making it well suited for the hunter, outdoor enthusiast, or birder. Extra-low dispersion fluoride glass elements efficiently transmit all wavelengths of visible light, resulting in bright images that are color faithful, crisp, and rich with detail. An integrated field-flattener lens system corrects spherical aberrations to reveal crisp details at the edges of the view without distortion. SWARODUR and SWAROTOP coatings on all lenses and prisms minimize glare while maximizing contrast.

Complementing the optical performance and technologies is a lightweight and durable magnesium-alloy chassis that is wrapped in a protective rubber armor. Its optical tubes are nitrogen filled and O-ring sealed to be dustproof, waterproof and submersible, and resistant to internal fogging when moving through extreme temperature changes or environmental conditions. The tripod collar has a 1/4"-20 socket on the bottom of the Arca-Swiss-compatible shoe and a rotating collar to allow for precise eyepiece placement relative to the mounting system.

Optical Performance

  • Optional eyepiece module required: straight (STX) or angled (ATX) viewing and binocular viewer (BTX) available
  • Large 85mm objective lens draws in more light than the smaller module and produces a larger exit pupil for improved low-light performance
  • Extra-low dispersion fluoride HD glass limits chromatic aberrations to produce clearer and sharper views with little or no color fringing
  • Field-flattener lens system eliminates spherical aberrations to eliminate distortion at the edges of the field of view
  • Anti-reflection SWAROTOP lens coatings reduce glare and improve contrast, color rendition, and clarity
  • Scratch-resistant SWARODUR coatings protect exterior lens surfaces

Use and Handling

  • Large focusing collar is easy to manipulate even when wearing gloves
  • Rotating tripod mount allows for precise eyepiece placement
  • M87x0.75 objective lens filter thread
  • Tripod shoe is compatible with Arca-Swiss quick release plates; standard 1/4"-20 socket on bottom of shoe

Construction Details

  • Lightweight and impact-resistant magnesium-alloy housing
  • Rubber armor protects against impacts while providing a slip-resistant grip for more secure handling during setup and breakdown
  • SWAROCLEAN non-stick coating on exposed lens surfaces allows sap and oils to be easily cleaned for clearer views
  • Nitrogen filled and O-ring sealed to be dustproof, waterproof/submersible to 13', and resistant to internal fogging when moving through extreme temperature changes or environmental conditions
  • Broad -13 to 131°F operating temperature range


What’s Included?

  • Swarovski ATX Spotting Scope Modular Zoom Eyepiece (Angled Viewing)
  • Objective Lens Cover
  • Tethered Eyepiece Cover
  • Limited 10 Year Warranty

·         Swarovski 85mm Objective Lens Module

·         Objective Lens Cap

·         Rear Bayonet Mount Cap

·         Limited 10 Year Warranty





With ATX-65, ATX-85 Scopes: 25 to 60x
With ATX-95 Scopes: 30 to 70x

Angle of View

With 65 mm, 85 mm Scopes: 2.4 to 1.3° (Actual)
With 95 mm Scopes: 2 to 1.1° (Actual)
71 to 57° (Apparent)

Field of View

With ATX-65, ATX-85 Scopes: 124 to 68' @ 1000 yd / 37.8 to 20.7 m @ 1000 m
With ATX-95 Scopes: 104 to 57' @ 1000 yd / 31.7 to 17.4 m @ 1000 m

Minimum Focus Distance

With 65 Scopes: 6.9' / 2.1 m
With 85 Scopes: 11.8' / 3.6 m
With 95 Scopes: 15.7' / 4.8 m

Exit Pupil Diameter

With ATX-65 Scopes: 2.6 to 1.1 mm
With ATX-85 Scopes: 3.4 to 1.4 mm
With ATX-95 Scopes: 3.2 to 1.4 mm

Eye Relief

20.0 mm

Diopter Correction


Environmental Protection

Water-Resistant (Unrated)


Objective Lens Diameter

85 mm

Minimum Focus Distance

11.8' / 3.6 m



Yes, Nitrogen Filled

Environmental Protection

Water-Resistant (Unrated)


Filter Thread

M87 x 0.75

Tripod Mounting Thread

1/4"-20 Female


L: 10.3" / L: 26.2 cm


38.8 oz / 1100.0 g
