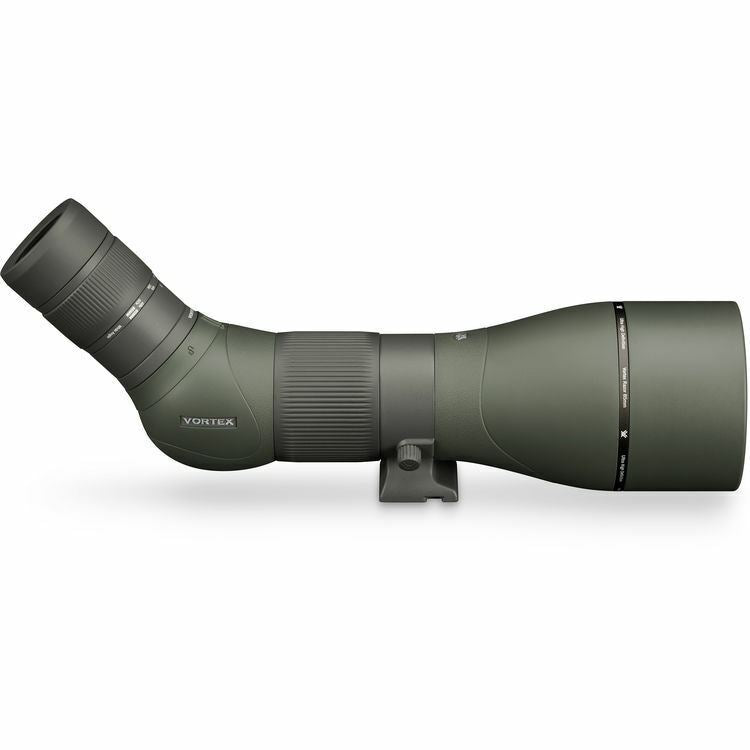

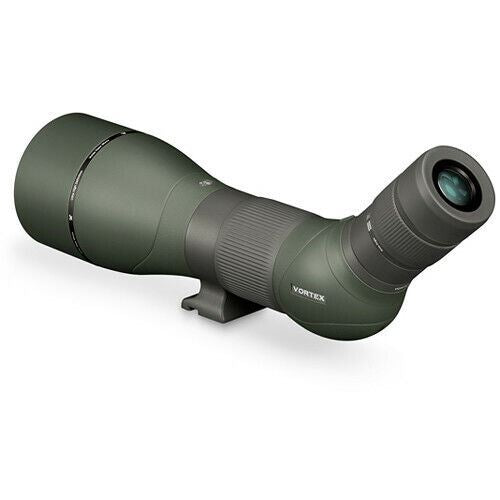

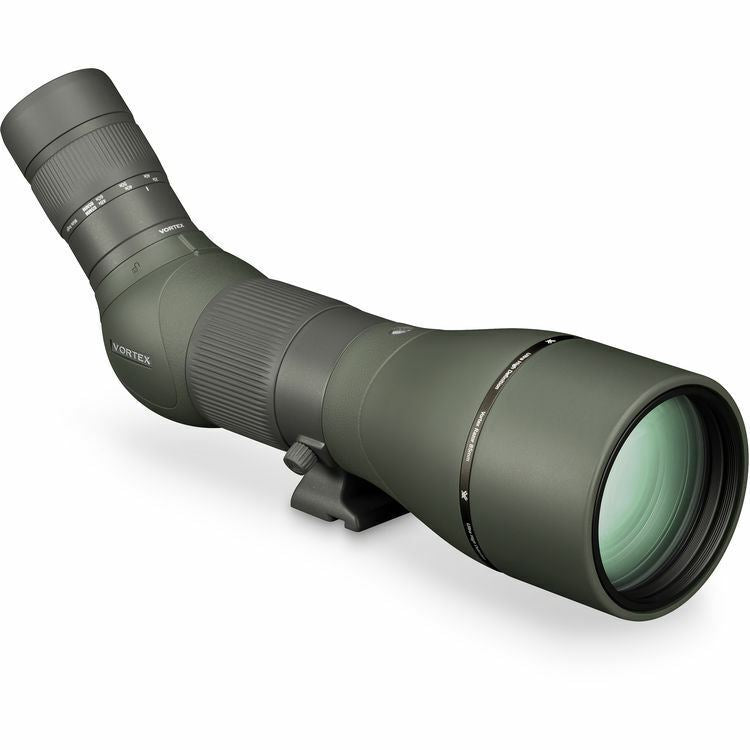

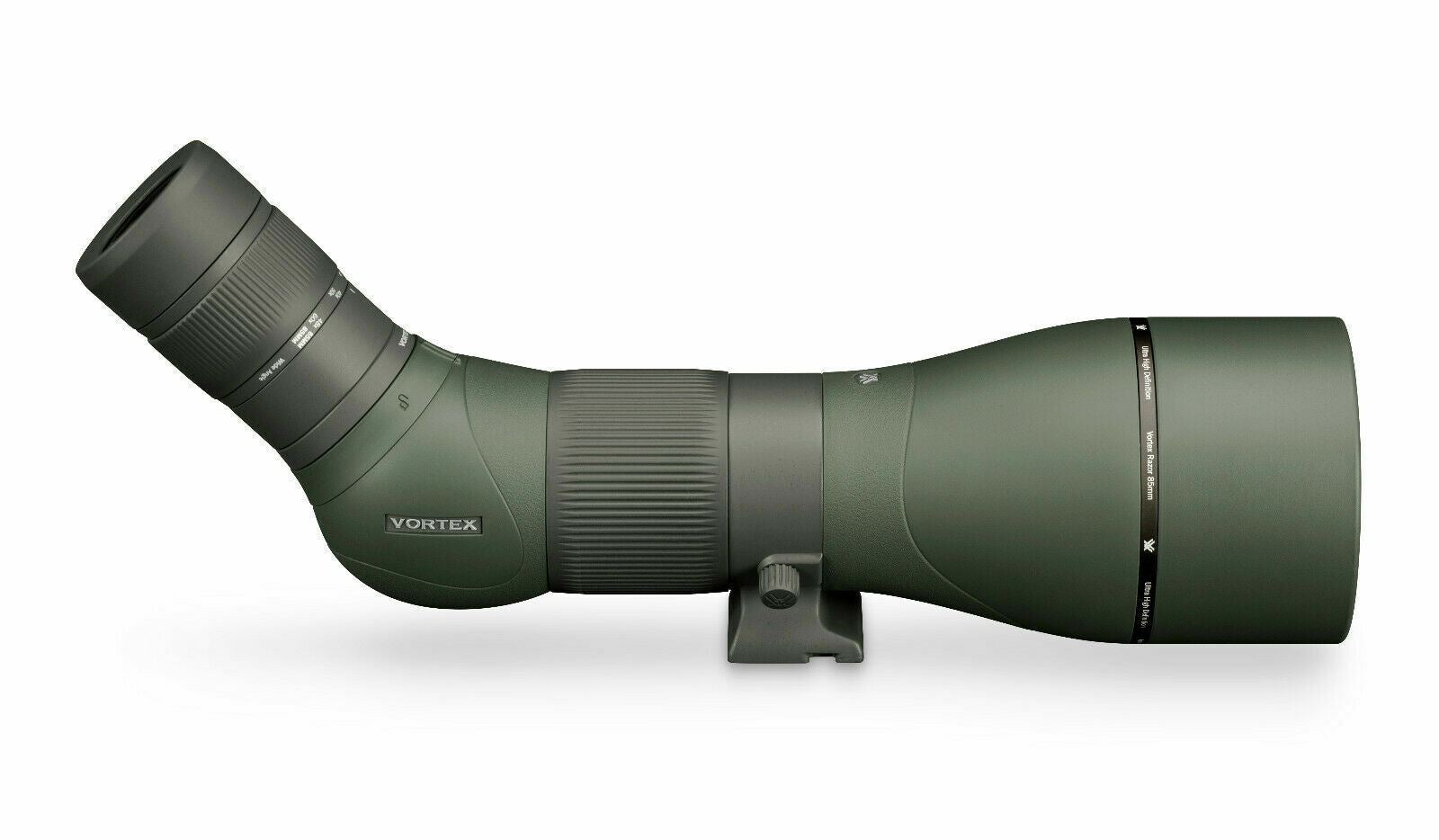

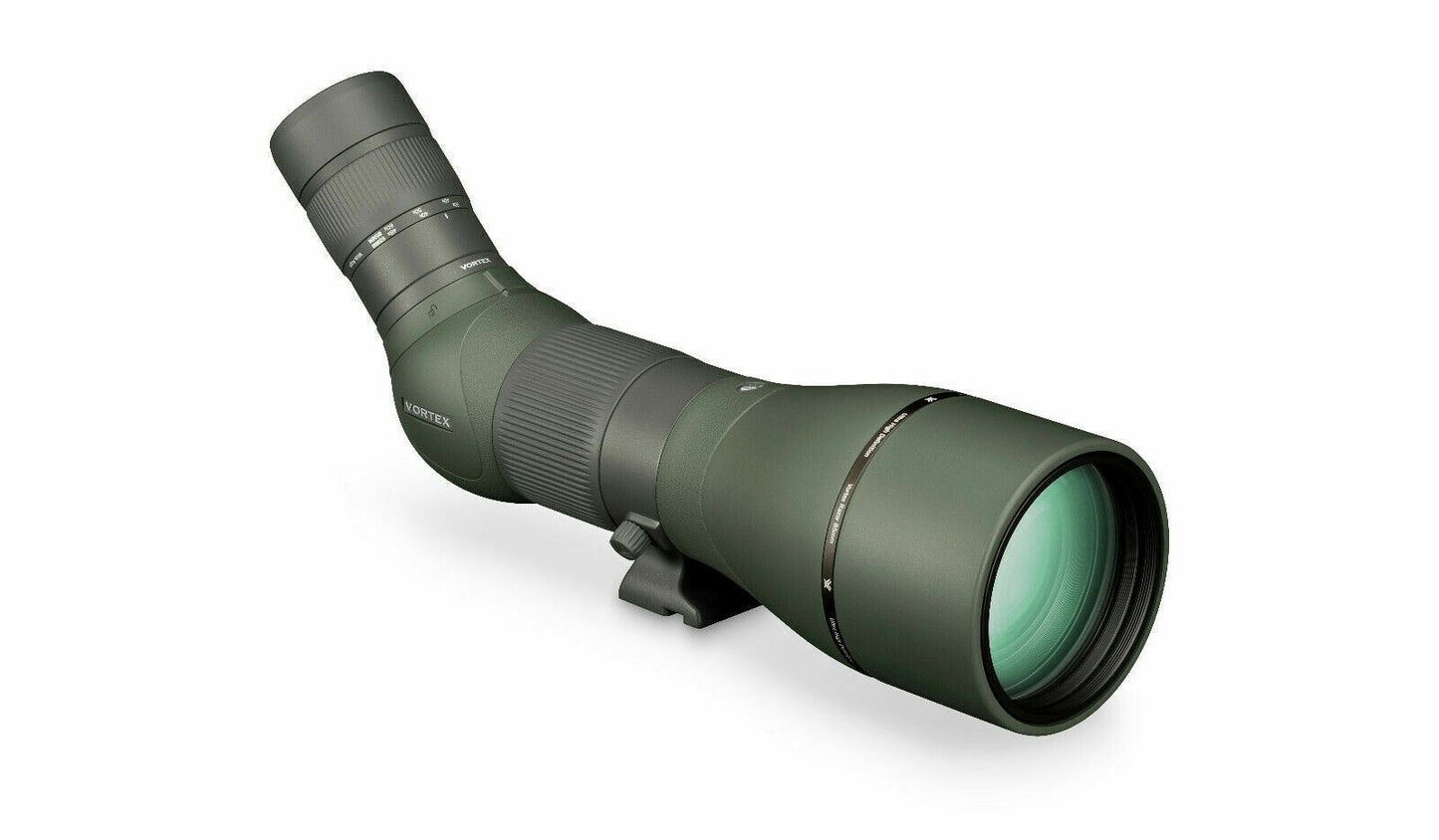

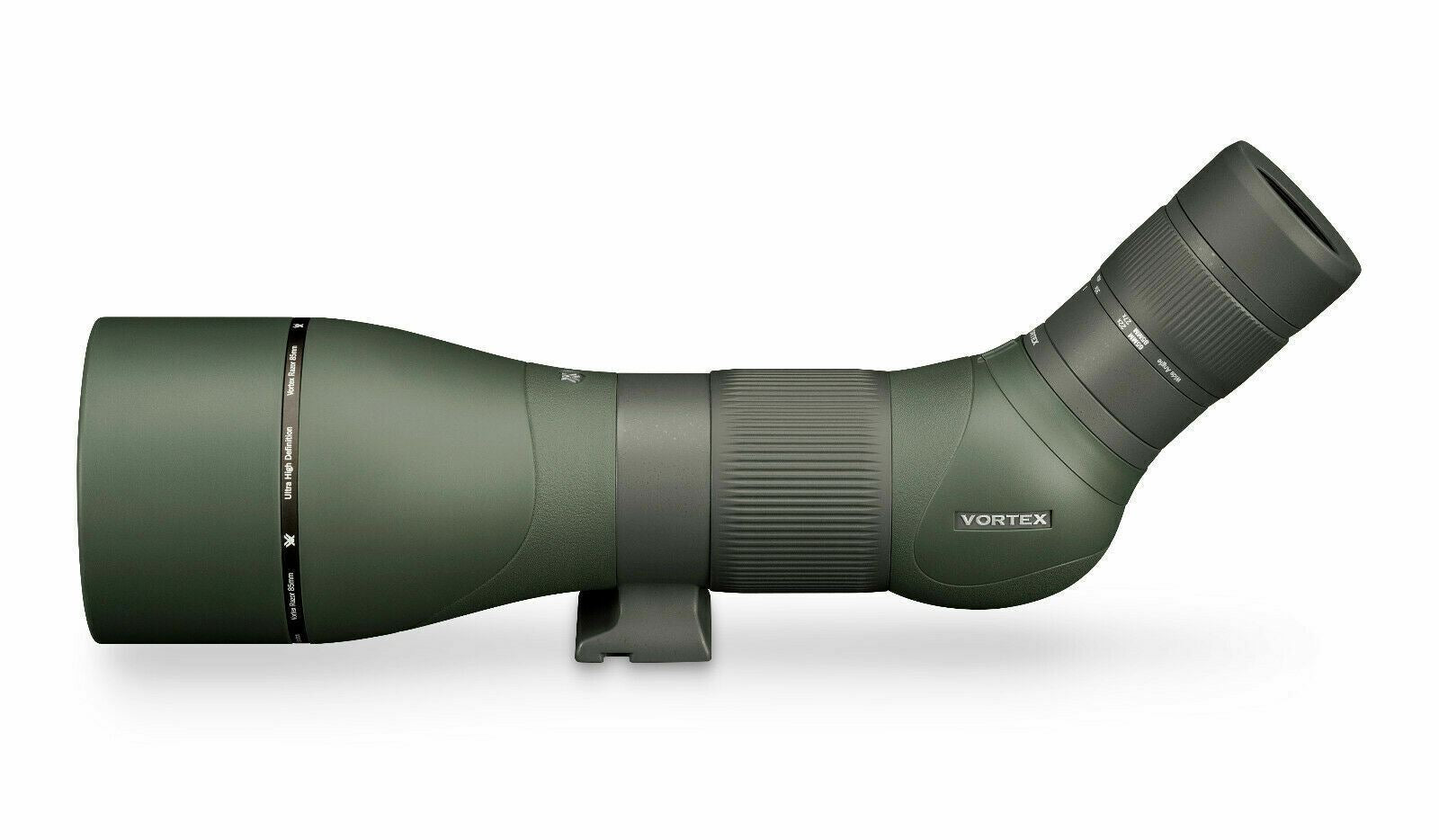

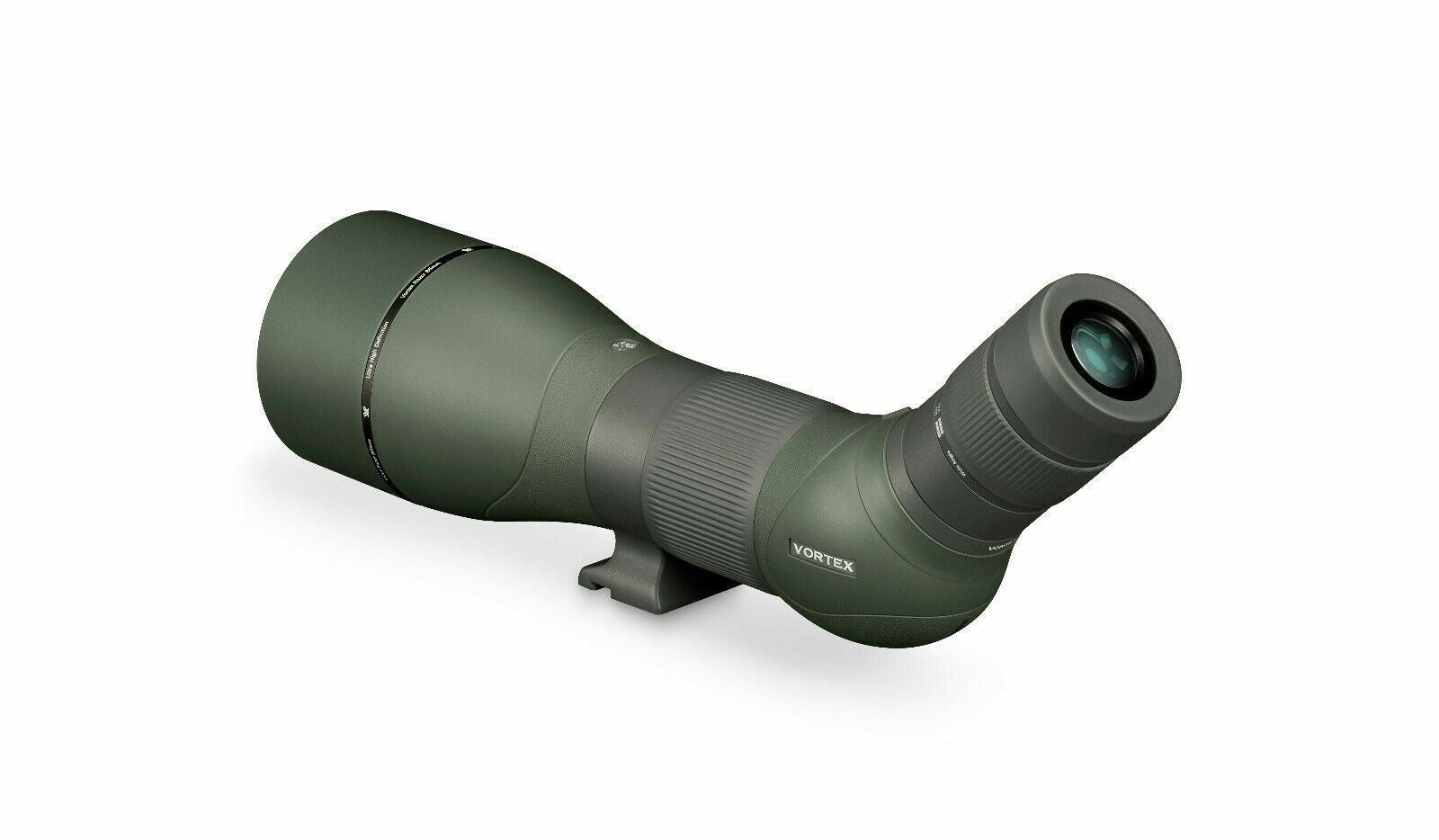

Vortex Razor HD 27-60 x 85mm Angled Spotting Scope + Case HD Glass (UK) BNIB NEW

Vortex Razor HD 27-60 x 85mm Angled Spotting Scope + Case HD Glass (UK) BNIB NEW

Regular price £1,459.00
Regular price Sale price £1,459.00
Sale Sold out
Taxes included.

Vortex Razor HD 27-60 x 85mm Angled Spotting Scope + Case HD Glass


Brand New UK Stock, boxed with full Guarantee

RRP = 1529

Key Features

  • Angled Viewing
  • 27-60x Zoom Eyepiece
  • 85mm Objective Lens
  • Dielectric Coated Porro Prism

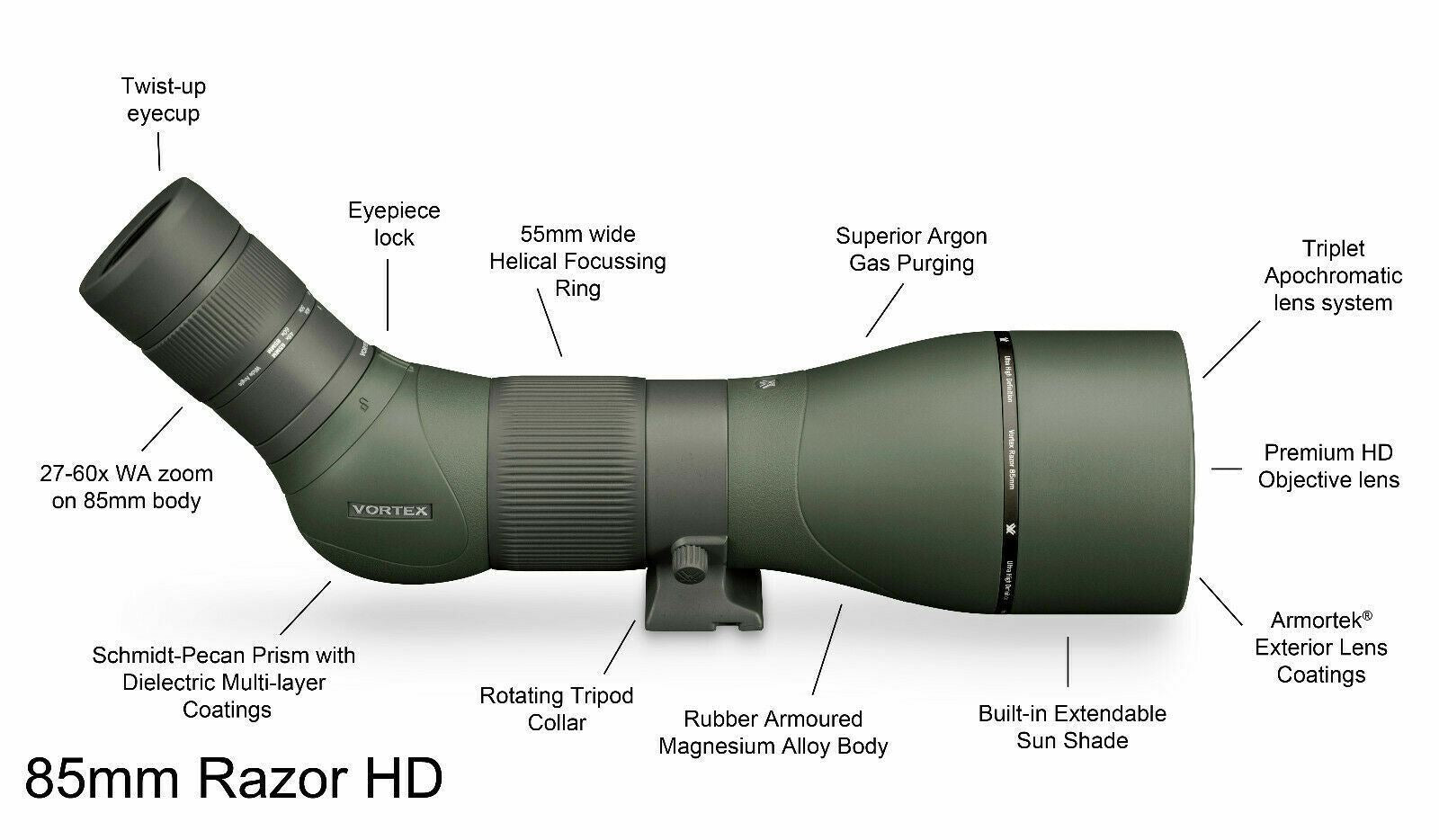

The Vortex Optics 45° angled-viewing Razor HD 27-60x85 Spotting Scope is engineered with an oversized objective, superior glass, and specialized optical coatings to provide clear and bright images at all magnifications and lighting conditions. The triplet apochromatic lens is made of high-density (HD) extra-low dispersion (ED) glass to increase light transmission, minimize distortion, and virtually eliminate chromatic aberration. All air-to-glass surfaces have Vortex's XRPlus anti-reflective coatings to minimise light loss and maximize image brightness, while the Porro prisms have highly reflective dielectric coatings that improve brightness, clarity, and colour accuracy. This combination of coatings and optics creates a spotting scope that produces bright, clear, high-contrast images with accurate colour rendition.

The lightweight and armoured magnesium chassis is O-ring sealed and argon filled to be water and fog-proof. A helical focus system, with a wide adjustment collar, allows for fast, yet fine focusing even when wearing gloves. The scope has a 1/4"-20 tripod mounting shoe and a tripod collar that rotates to permit the eyepiece to be positioned in the best viewing position. A retractable lens shade helps to reduce glare while keeping snow or rain off the objective lens.

Performance

  • 27-60x zoom magnification
  • 85mm objective lens
  • Traditional Porro prism optical path
  • High-density (HD) extra low-dispersion (ED) glass improves resolution and colour fidelity
  • Triplet apochromatic (Apo) lens increases colour, sharpness, contrast
  • XRPlus fully multi-coated optics increase light transmission and image brightness
  • Dielectric prism coatings produce bright, clear, colour-accurate images
  • ArmorTek: Hard, scratch-resistant lens coating protects exterior lenses from scratches, oil, and dirt
  • 117-68' field of view at 1000 yards

Use and Handling

  • Angled viewing
  • Eyepiece is set 45° to optical tube for comfortable viewing when standing, sitting, or lying prone
  • Helical focusing collar allows for fast, fine adjustments
  • 3-1.4mm exit pupil
  • Twist-up rubber eyecup for easy use with or without eyewear
  • 17-16.7 mm eye relief
  • Rotating tripod ring allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles
  • 1/4"-20 tripod mount

Construction Details

  • Lightweight and corrosion-resistant die-cast magnesium-alloy chassis
  • Rubberised armouring protects while providing slip-resistant handling
  • Argon-filled optical tube prevents internal fogging over a wide range of temperatures
  • O-ring seals prevent moisture, dust, and debris from penetrating the optical tube
  • Built-in retractable sunshade reduces glare and shields the objective lens from raindrops and snow

What’s Included?

  • Vortex Razor HD 27-60x85 Spotting Scope (Angled Viewing)
  • Eyepiece Cap
  • Objective Lens Cap
  • Stay-On View-Through Carrying Case
  • Limited Lifetime Warranty

Specification

Viewing Angle

Angled

Magnification

27 to 60x

Objective Lens Diameter

85 mm

Field of View

27x: 117.0' @ 1000 yd / 39.0 m @ 1000 m
60x: 68.0' @ 1000 yd / 23.0 m @ 1000 m

Minimum Focus Distance

16.4' / 5.0 m

Exit Pupil Diameter

27x: 3.1 mm
60x: 1.4 mm

Eye Relief

17.0 to 16.7 mm

Fog-proof

Yes, Argon Filled

Water Resistance

Waterproof

Tripod Mounting Thread

1/4"-20 Female

Dimensions

L: 15.5" / L: 39.4 cm

Weight

4.1 lb / 1.9 kg

Package Weight

6.6 lb

Box Dimensions (LxWxH)

15.8 x 7.6 x 6.8"
