The BOYA BY-WM8 Pro is upgraded addition of UHF Dual-Channel Wireless Microphone System and can be used to capture audio for live sound, ENG, broadcast and film, talk shows, conferences and more.

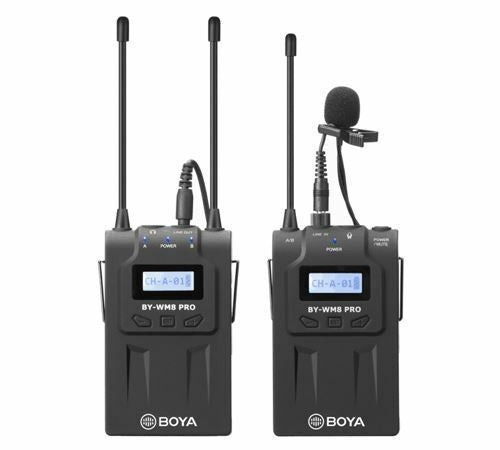

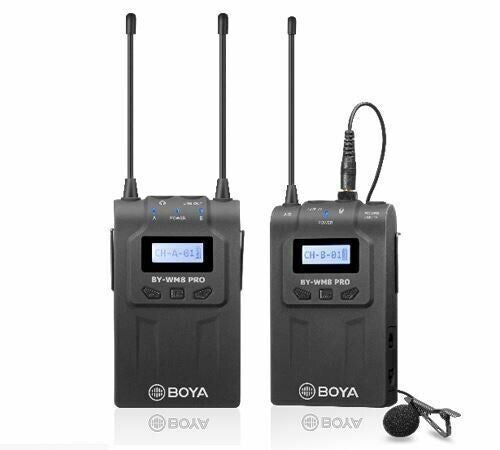

The BY-WM8 Pro-K1 system consists of a bodypack transmitter, a camera-mount receiver, and two omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable, carrying case.

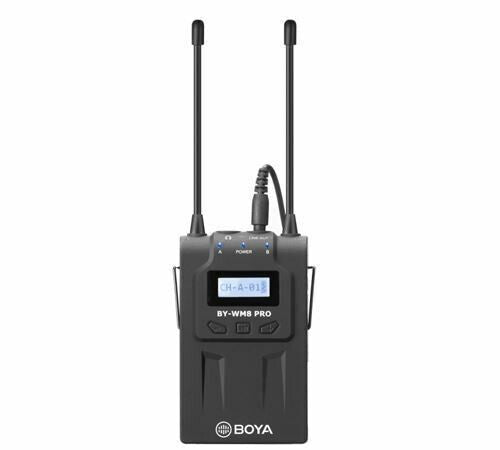

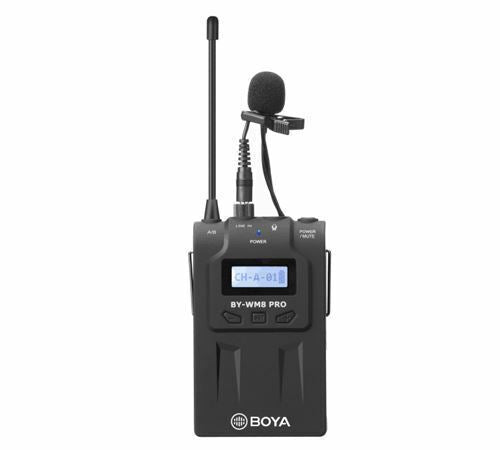

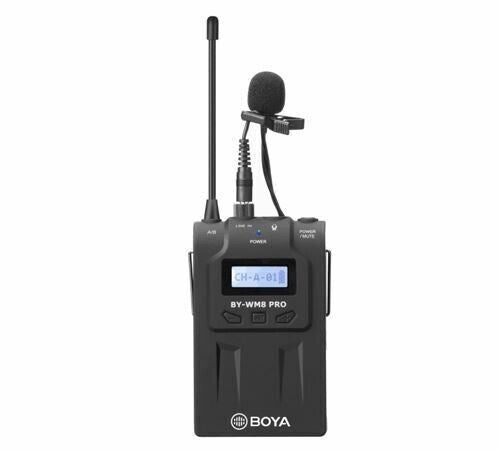

The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read LCD display and a 3.5mm headphone jack for real-time monitoring. And the bodypack transmitter is equipped with a crystal-controlled PLL synthesizer, a muting function, a 1/8" mic input and a 1/8" line-in jack.
• Digital Companding Circuitry
• User-friendly menu operation with more control options
• Auto-Lock function avoids accidental changing of settings
• One Mic input and one Line Input for transmitter
• Monitoring of receiver via headphones directly
• Wide range of accessories adapts the system to most of requirements
Specifications
Oscillator type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 556.71 MHz-575.98 MHz (Transmitter: A )
576.39 MHz-595.66MHz (Transmitter: B )
Channels: 48
Frequency response: 40 Hz to 18 kHz (+/-3dB)
Operation range: 100m (300')(without obstacle)
Antenna: 1/4λ wire antenna
Audio input connector: 3.5mm mini jack
Signal to noise ratio 70dB or more
Distortion: 0.5% or less
Headphone output level: -60dBV
Power supply Two AA size batteries
Operation time: About 4 hours
Dimensions: 208(H) × 67(W) × 29(L)mm
Weight: 90g without batteries
